Product overview

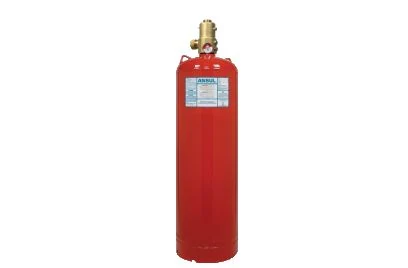

FM-200 25 Bar is a gaseous suppression system for protecting valuable equipment while limiting residue cleanup. The extinguishing agent acts primarily through heat absorption. Agent concentration, discharge arrangement and enclosure conditions form part of the complete engineered system.
Technical specifications
| Manufacturer | ANSUL |
|---|---|
| Product / system | FM-200 25 Bar System |
| Product type | Fire Suppression |
| Product family | Gaseous Suppression |
| Subcategory | Halocarbon / Clean Agent |
| Agent | FM-200 |
| System pressure designation | 25 bar |
| Protection approach | Gaseous suppression |
| Electrical characteristic | Non-conductive extinguishing agent |
| Manufacturer-listed approvals | UL Listed; FM Approved; LPCB listed; CE component approval; PESO component approval |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Heat absorption provides the principal extinguishing action
- Agent concentration must be maintained for the required protection period
- The complete system requires application-specific engineering
Applications
Electrical equipment, switchrooms, machining and other hazards covered by the system design.
Selection and project integration
Share the protected-space drawings, hazard description, equipment schedule and project specification with UDCT. The technical review should establish the selected system configuration, required quantity, installation constraints and interfaces with the detection and control equipment. For gaseous suppression, enclosure integrity, pressure relief, discharge acoustics and personnel safeguards must be assessed as part of the engineered design.
The published model designation is a product reference, not a final bill of materials. Agent quantities, pipe sizing, nozzle selection, storage arrangements and release logic depend on the approved design. Use the current manufacturer instructions for installation, testing and maintenance, and confirm availability with UDCT before procurement.
Manufacturer documents
- F-2015167-01_A4–ANSUL-FM-200-Power-Generation-Application-Sheet-A4-Format ( English ) (opens in a new tab)
- ANSUL FM-200 Fire Suppression Systems Product Overview (Rev ( English ) (opens in a new tab)
- F-2015173-01_A4-ANSUL-FM-200-Fire-Suppression-Systems-Product-Overview-A4-Format ( English ) (opens in a new tab)
- F-2015173-01-FM-200-Product-Overview-REBRAND-LR ( English ) (opens in a new tab)
- ANSUL FM-200 Total Flooding Fire Suppression System Data Sheet (Rev ( English ) (opens in a new tab)
- F-2015169-01 FM-200 Total Flooding Fire Suppression System ( English ) (opens in a new tab)
