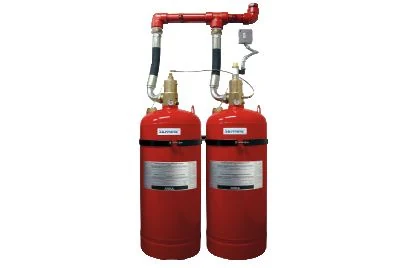

Product overview
This 25 bar Sapphire system uses FK-5-1-12 for fire suppression around valuable equipment. Its non-conductive agent acts primarily by absorbing heat and avoids the residue associated with some other extinguishing media. It is intended for environments where electronic equipment, asset protection and post-discharge cleanup are important selection considerations.
Technical specifications
| Manufacturer | ANSUL |
|---|---|
| Product / system | SAPPHIRE 25 Bar System |
| Product type | Fire Suppression |
| Product family | Gaseous Suppression |
| Subcategory | Halocarbon / Clean Agent |
| Agent | FK-5-1-12 |
| System pressure designation | 25 bar |
| Protection approach | Gaseous clean agent |
| Electrical characteristic | Non-conductive extinguishing agent |
| Nozzle coverage patterns | 180° and 360° |
| Nozzle size choices | Six sizes |
| Manufacturer-listed approvals | UL Listed; FM Approved; LPCB listed; VdS system approval; A2P system approval; CNBOP system listing; CE component approval; PESO component approval |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Agent absorbs heat during suppression
- Clean discharge limits residue cleanup
- Engineered nozzle and pipe network
Applications
Data processing facilities, control rooms, museums, aviation facilities and power generation applications, subject to the approved design.
Selection and project integration
Share the protected-space drawings, hazard description, equipment schedule and project specification with UDCT. The technical review should establish the selected system configuration, required quantity, installation constraints and interfaces with the detection and control equipment. For gaseous suppression, enclosure integrity, pressure relief, discharge acoustics and personnel safeguards must be assessed as part of the engineered design.
The published model designation is a product reference, not a final bill of materials. Agent quantities, pipe sizing, nozzle selection, storage arrangements and release logic depend on the approved design. Use the current manufacturer instructions for installation, testing and maintenance, and confirm availability with UDCT before procurement.
