Product overview

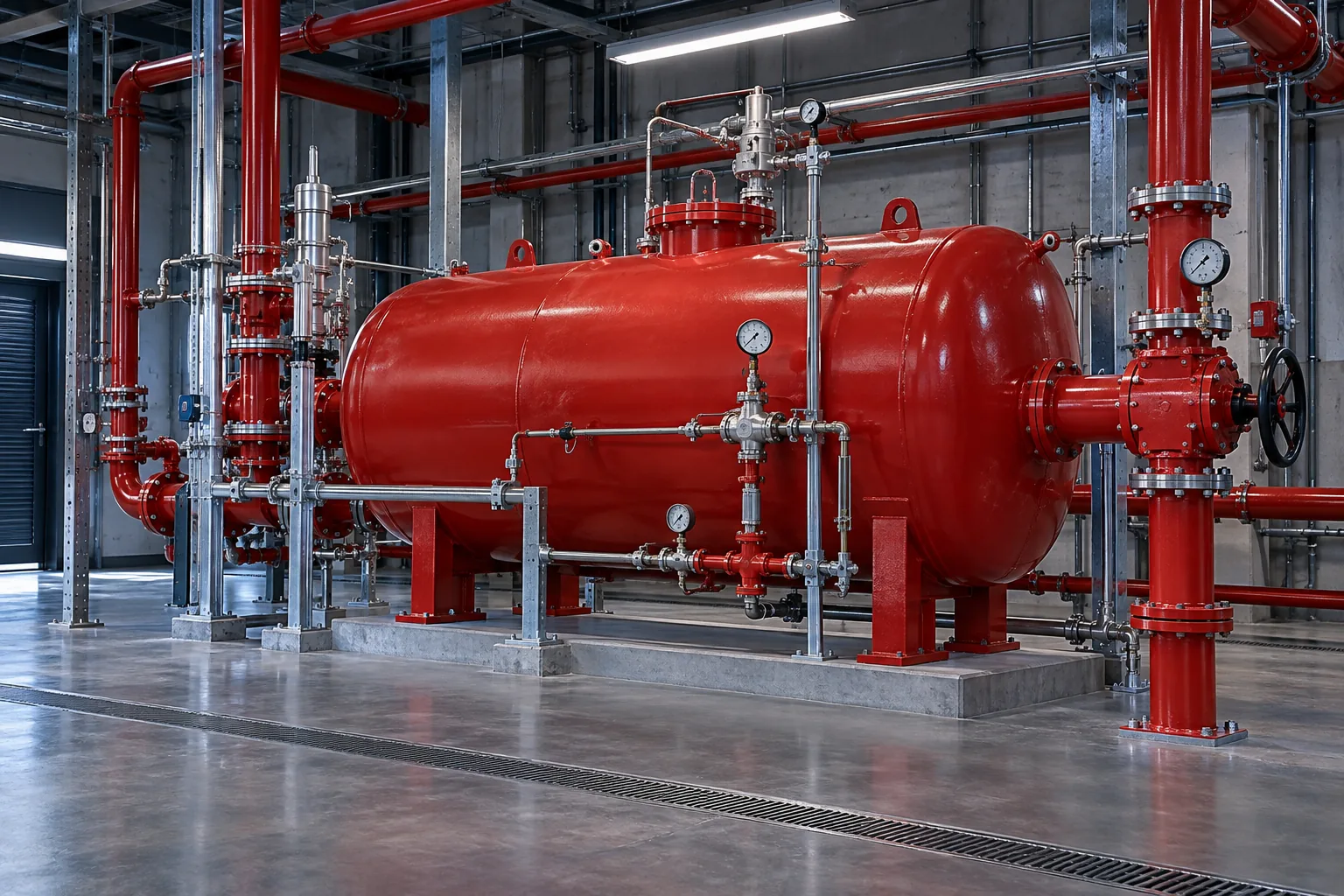

The HD Fire Bladder Tank Foam Proportioning System stores foam concentrate separately from the system water in a bladder tank. The assembly is selected together with a compatible proportioner and discharge equipment. Published tank capacities range from 140 to 15,000 litres (36 to 4,000 gallons), with a published pressure rating of 175 psi (12.1 bar). Carbon steel and stainless steel construction options are identified by the manufacturer.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Bladder Tank Foam Proportioning System |
| Product type | Foam Systems |
| Product family | Foam Proportioning Systems |
| Subcategory | Proportioning |
| Published pressure rating | 175 psi (12.1 bar) |
| Construction | Carbon Steel or Stainless Steel |
| Flow / capacity as published | Capacity: 140 litres to 15000 litres (36 to 4000 gal) |
| Connections / interface standard | Can be offered in flanged or grooved inlet/outlet connection |
Key features
- Defined pipework connection interface
Applications
Use within foam proportioning systems applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
Manufacturer documents
- PRODUCT CATALOGUE (ENGLISH) (opens in a new tab)
- PRODUCT CATALOGUE (SPANISH) (opens in a new tab)
- UL APPROVAL CERTIFICATE (opens in a new tab)
- FM APPROVAL CERTIFICATE (opens in a new tab)
- CE CERTIFICATE (opens in a new tab)
- ASME CERTIFICATE (opens in a new tab)
