Product overview
The HD Fire Automatic Ball Drip Valve is part of the manufacturer's deluge valves & skids range. It should be selected as a coordinated component of the relevant protection system. Review the construction, connection and rating data below against the exact installation and manufacturer documentation. Published pressure rating: 17.5 bar (250 psi).
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|

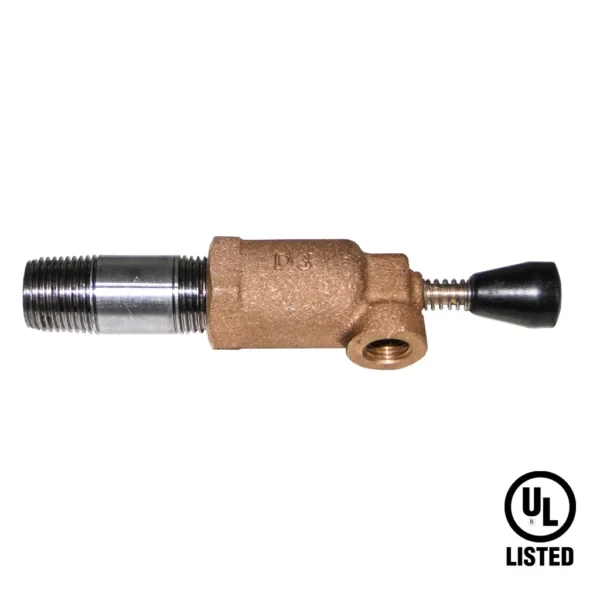

| Product / system | Automatic Ball Drip Valve |
| Product type | Water-Based Systems |
| Product family | Deluge Valves & Skids |
| Subcategory | Deluge / Accessories |
| Model reference | D3 |
| Housing material | Bronze, IS:318-LTB-II |
| Ball material | Stainless steel |
| Connection | 1/2 inch BSPT |
| Published pressure rating | 17.5 bar (250 psi) |
| Listing scope | Part of the HD UL-listed deluge valve arrangement |
Key features
- Defined pipework connection interface
Applications
Use within deluge valves & skids applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
Manufacturer documents
Official product reference
View this product on the manufacturer website (opens in a new tab)
