Product overview

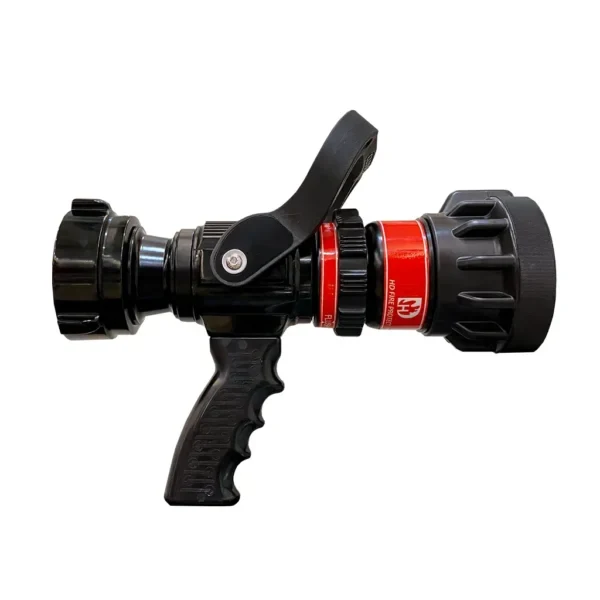

The HD Fire Fire Hose Nozzle Model CG provides the discharge arrangement described in its technical reference. Coordinate the selected nozzle, required flow, pressure and coverage with the protected hazard and the approved system layout. Orifice and connection choices should be checked for the exact model being supplied. Available sizes: 1″ (25 mm), 2-1/2″ (65 mm). Published pressure rating: 50-100 PSI (3.5-7 Bar).
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Fire Hose Nozzle Model CG |
| Product type | Fire Fighting Equipment |
| Product family | Handline Nozzles |
| Subcategory | Adjustable Handline Nozzle |
| Available sizes | 1″ (25 mm), 2-1/2″ (65 mm) |
| Published pressure rating | 50-100 PSI (3.5-7 Bar) |
| Material | Hard Anodized Aluminium |
| Finish | Black |
Key features
- Model-specific construction and rating information
Applications
Use within handline nozzles applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
