Product overview

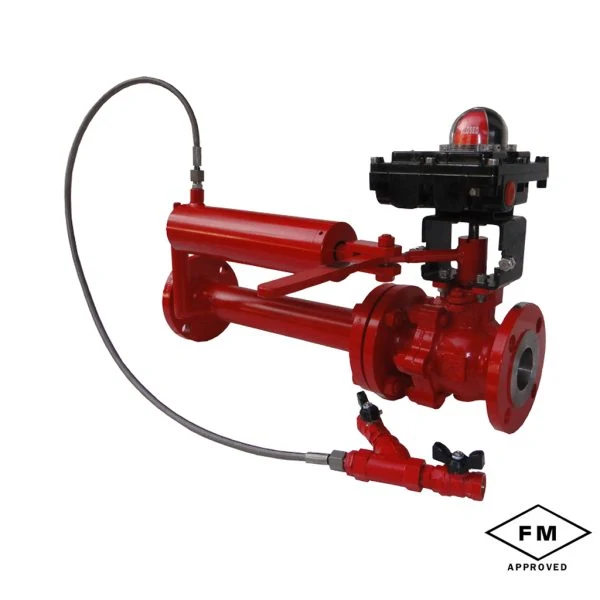

The HD Fire Foam Concentrate Control Valve is a component or assembly within the manufacturer's foam proportioning systems range. The model-specific construction, interfaces and configuration choices are summarized below. Select the equipment together with the compatible valve, sprinkler or system arrangement described in the official technical reference.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Foam Concentrate Control Valve |
| Product type | Foam Systems |
| Product family | Foam Proportioning Systems |
| Subcategory | Proportioning |
| Nominal sizes | 25 / 40 / 50 mm (1 / 1.5 / 2 inches) |
| Material | Stainless steel |
| Operation | Hydraulically controlled |
| Working pressure | 2.1–12 bar (30–175 psi) |
| Compatible arrangements | Foam bladder tank / inline balanced-pressure system |
| Model CV equipment | Visual indicator and limit switch |
| FM approval scope | Model CV with foam bladder tank proportioning system |
Key features
- Nominal sizes: 25 / 40 / 50 mm (1 / 1.5 / 2 inches)
- Material: Stainless steel
- Operation: Hydraulically controlled
Applications
Use within foam proportioning systems installations covered by the manufacturer reference. Confirm model compatibility, connections and operating conditions against the approved project design.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
