Product overview

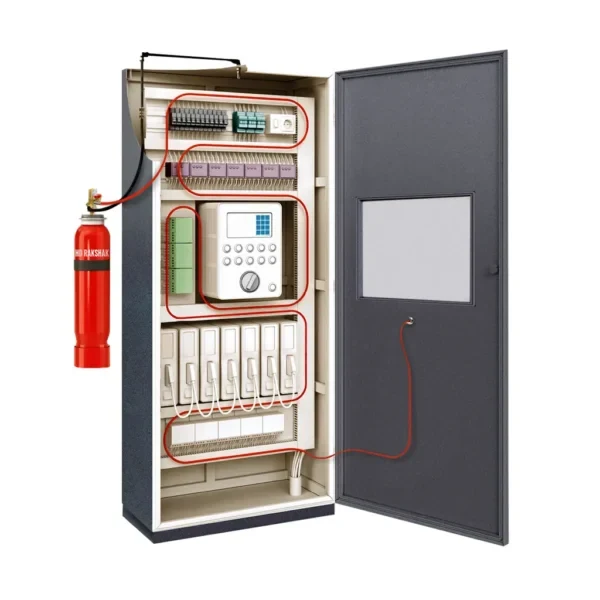

HD-RAKSHAK IHP is a carbon dioxide suppression system with heat-sensing detection tubing. The manufacturer identifies cylinder charges from 2 to 18 kg, a brass automatic IHP valve and brass or stainless-steel diffuser nozzles. The tubing listing applies to that component and should not be read as approval of every complete installation.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | HD-RAKSHAK IHP CO2 System |
| Product type | Fire Suppression |
| Product family | Gaseous Suppression |
| Subcategory | Local Application CO2 |
| Extinguishing agent | CO2 |
| Cylinder charge range | 2–18 kg |
| Manufacturer-stated operating pressure | 60 bar |
| Automatic IHP valve | Brass |
| Diffuser nozzle materials | Brass / stainless steel |
| Detection method | Heat-sensing tubing |
| Listing scope | UL Listed detection tubing |
Key features
- Extinguishing agent: CO2
- Cylinder charge range: 2–18 kg
- Manufacturer-stated operating pressure: 60 bar
Applications
Localized equipment hazards within the manufacturer system design criteria. CO2 personnel safeguards, evacuation and exclusion requirements must be established for the installation.
Selection and project integration
Share the protected-space drawings, hazard description, equipment schedule and project specification with UDCT. The technical review should establish the selected system configuration, required quantity, installation constraints and interfaces with the detection and control equipment. For gaseous suppression, enclosure integrity, pressure relief, discharge acoustics and personnel safeguards must be assessed as part of the engineered design.
The published model designation is a product reference, not a final bill of materials. Agent quantities, pipe sizing, nozzle selection, storage arrangements and release logic depend on the approved design. Use the current manufacturer instructions for installation, testing and maintenance, and confirm availability with UDCT before procurement.
