Product overview

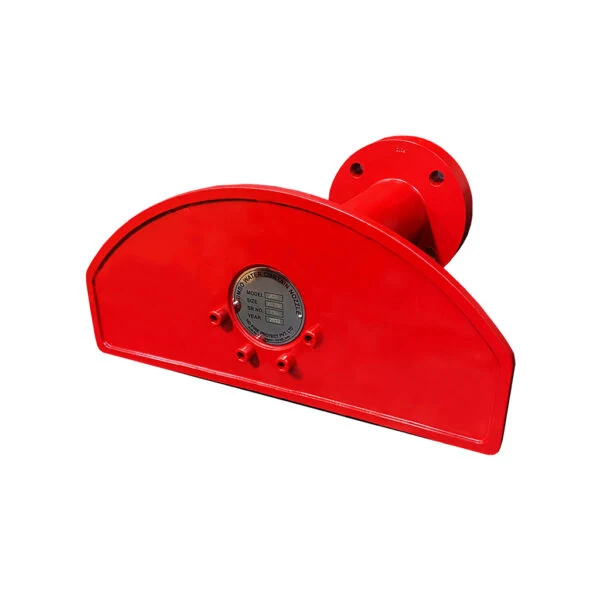

The HD Fire Jumbo Water Curtain Nozzle provides the discharge arrangement described in its technical reference. Coordinate the selected nozzle, required flow, pressure and coverage with the protected hazard and the approved system layout. Orifice and connection choices should be checked for the exact model being supplied. Available sizes: 65, 80 or 100 mm flanged end (2.5″, 3″ or 4″).
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Jumbo Water Curtain Nozzle |
| Product type | Water-Based Systems |
| Product family | Water Spray Nozzles |
| Subcategory | Spray Nozzles |
| Model reference | JCS in Stainless Steel construction |
| Available sizes | 65, 80 or 100 mm flanged end (2.5″, 3″ or 4″) |
| Flow / capacity as published | Flow at 100 psi: 1000 to 3000 lpm (264 to 792 gpm) |
Key features
- Model-specific construction and rating information
Applications
Use within water spray nozzles applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
