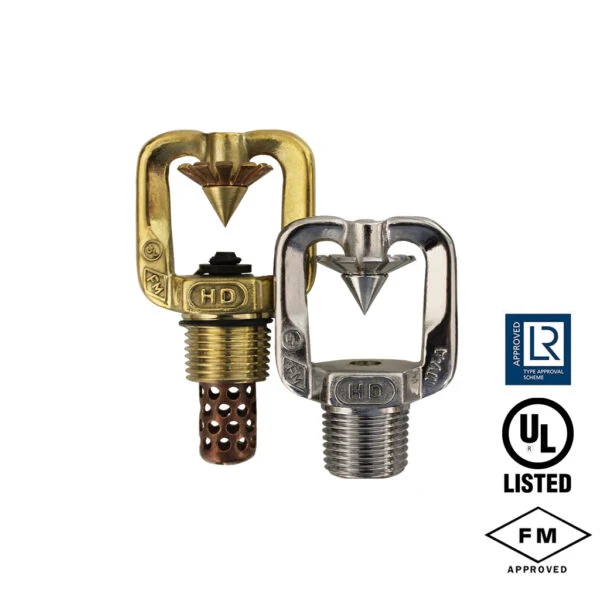

Product overview
The HD Fire Medium Velocity Spray Nozzle provides the discharge arrangement described in its technical reference. Coordinate the selected nozzle, required flow, pressure and coverage with the protected hazard and the approved system layout. Orifice and connection choices should be checked for the exact model being supplied. Available sizes: 1/2″ BSPT or NPT.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Medium Velocity Spray Nozzle |
| Product type | Water-Based Systems |
| Product family | Water Spray Nozzles |
| Subcategory | Spray Nozzles |
| Construction / material options | Brass for Model MV-A and MV-AS; Stainless Steel for Model MV-B and MV-BS; Aluminium Bronze for Model MV-E |
| Available sizes | 1/2″ BSPT or NPT |
| K-Factor (METRIC) | 18, 22, 26, 30, 35, 41, 51, 64, 79, 91 & 102 |
| K-Factor (US) | 1.26, 1.54, 1.8, 2.10, 2.45, 2.87, 3.57, 4.48, 5.53, 6.37 & 7.14 |
| Movement / coverage | Spray angle – 65°, 80°, 90°, 100°, 110°, 120°, 140° & 160° |
| Finish | Brass, Bright Nickel Chrome or Natural Finish |
| Nozzle approvals as stated by manufacturer | UL Listed, FM Approved and Lloyd’s Register Type Approved |
| Optional blow-off plug approval | FM Approved |
Key features
- Published movement or spray-coverage configuration
Applications
Use within water spray nozzles applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
Manufacturer documents
- UL APPROVAL CERTIFICATE (opens in a new tab)
- FM APPROVAL CERTIFICATE (opens in a new tab)
- LR TYPE APPROVAL (opens in a new tab)
