Product overview

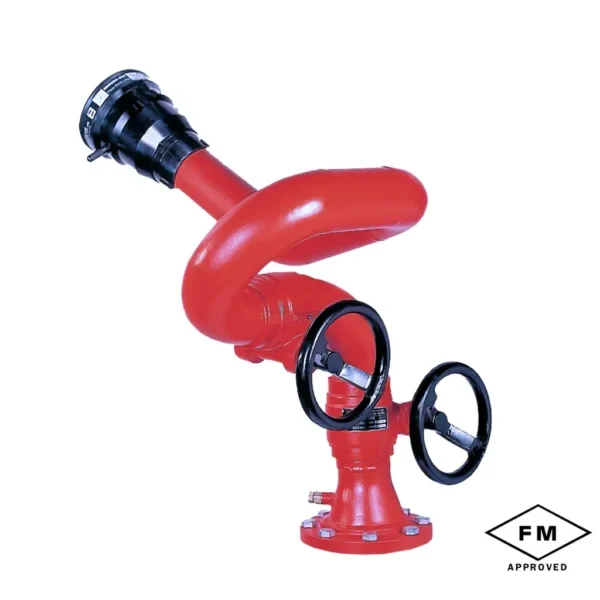

The HD Fire MG 413 Carbon Steel Monitor directs the fire-fighting stream through the nozzle arrangement specified for the model. Coordinate the inlet, nozzle, permitted movement and operating conditions as one assembly. The documented material and performance data distinguish this monitor from other configurations in the range. Available sizes: 100 mm (4″) with 100 or 150 mm (4″ or 6″) flanged inlet and 4″ BSP male outlet. Published pressure rating: 12 bar (175 psi).
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | MG 413 Carbon Steel Monitor |
| Product type | Fire Fighting Equipment |
| Product family | Fire Monitors |
| Subcategory | Fixed / Oscillating / Remote |
| Available sizes | 100 mm (4″) with 100 or 150 mm (4″ or 6″) flanged inlet and 4″ BSP male outlet |
| Published pressure rating | 12 bar (175 psi) |
| Flow / capacity as published | Flow up to 4750 lpm (1250 gpm) friction loss less than 10 psi |
Key features
- Model-specific construction and rating information
Applications
Use within fire monitors applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
