Product overview

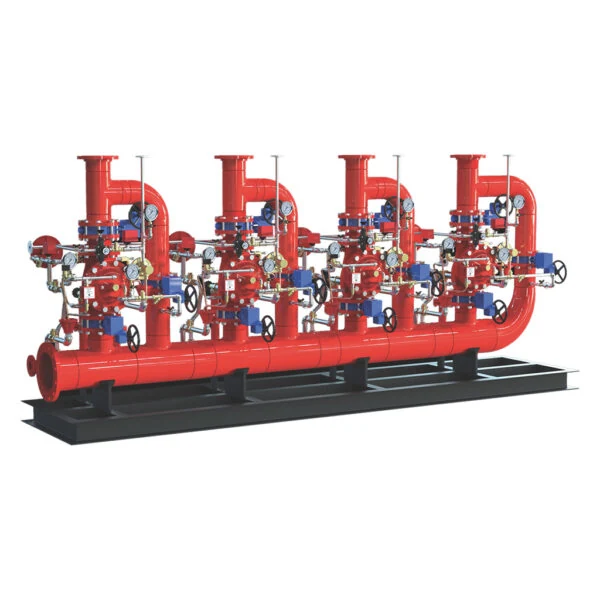

The HD Fire Multi-Line Vertical Deluge Skids is an engineered assembly selected to suit the project rather than a single standard bill of materials. Its documented arrangement and available options are listed below. The final equipment schedule must define capacity, flow, pressure, materials, controls and interfaces for the particular hazard. Factory assembly and configuration should be confirmed in the approved submittal.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Multi-Line Vertical Deluge Skids |
| Product type | Foam Systems |
| Product family | Custom Engineered Systems |
| Subcategory | Engineered Skids |
| Valve orientation | Vertical |
| Valve quantity | Up to eight deluge valves on one skid |
| Pipework arrangement | Common inlet and drain line |
| Frame options | Open frame / enclosed |
| Enclosure options | Insulation and temperature control |
| Factory preparation | Assembled and tested |
Key features
- Valve orientation: Vertical
- Valve quantity: Up to eight deluge valves on one skid
- Pipework arrangement: Common inlet and drain line
Applications
Industrial fire protection installations requiring the documented assembly arrangement and project-specific equipment selection.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
