Product overview

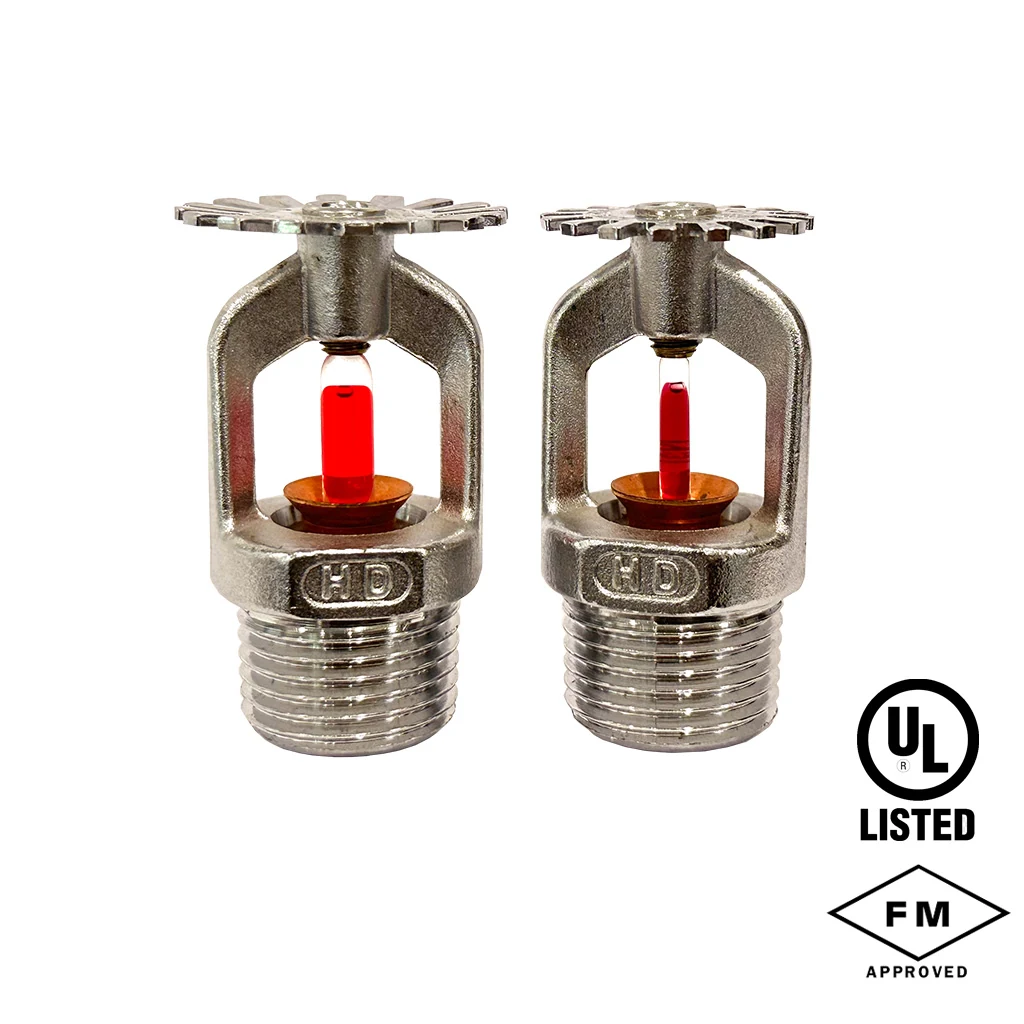

HD Fire offers pendent sprinklers within its water-based protection range. Match the orientation, response, coverage, temperature selection and connection to the approved sprinkler design. Hydraulic calculations and the current manufacturer reference define the final equipment selection. Published pressure rating: 175 psi (12 bar).
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Pendent Sprinklers |
| Product type | Water-Based Systems |
| Product family | Sprinklers & Accessories |
| Subcategory | Sprinklers / Accessories |
| K-Factor | 5.6 (80) |
| Connections / interface standard | Thread Size: 1/2″ BSPT |
| Published pressure rating | 175 psi (12 bar) |
| Temperature ratings | 57°, 68°, 79°& 93°C |
| Material / finish options | Brass, Chrome or White (RAL 9010), Custom colour shade available on request |
Key features
- Defined pipework connection interface
Applications
Water-based fire protection using the sprinkler orientation and coverage identified in the manufacturer reference. The selected response type, temperature rating, spacing and hydraulic demand must match the protected occupancy and the approved design.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
Manufacturer documents
- PRODUCT CATALOGUE (opens in a new tab)
- UL APPROVAL CERTIFICATE (opens in a new tab)
- FM APPROVAL CERTIFICATE (opens in a new tab)
Official product reference
View this product on the manufacturer website (opens in a new tab)
