Product overview

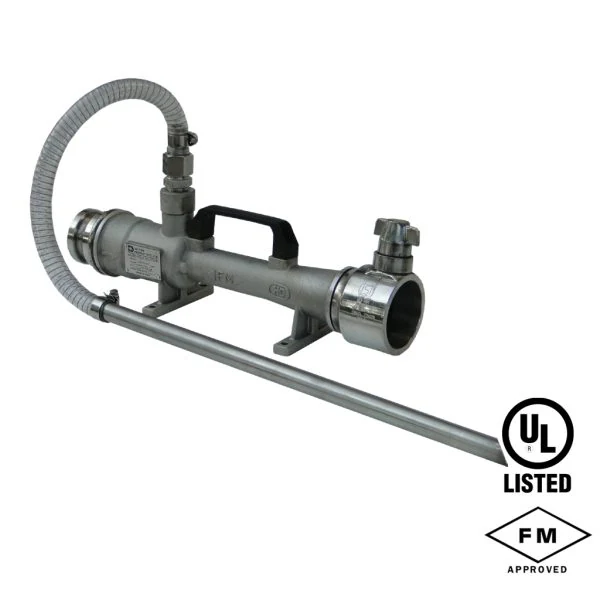

The HD Fire Portable Inline Foam Inductor is a component or assembly within the manufacturer's foam proportioning systems range. The model-specific construction, interfaces and configuration choices are summarized below. Select the equipment together with the compatible valve, sprinkler or system arrangement described in the official technical reference.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Portable Inline Foam Inductor |
| Product type | Foam Systems |
| Product family | Foam Proportioning Systems |
| Subcategory | Proportioning |
| Construction options | Stainless steel / bronze |
| Nominal size | 65 mm (2.5 inches) |
| Fixed-flow choices | 225 / 450 lpm |
| Calibrated inlet pressure | 7 / 12 kg/cm² |
| Finish | Yellow |
| FM approval scope | With HD AFFF 3% and AR-AFFF 3×3% FM foam concentrate |
| UL listing scope | With HD AR-SFFF F3 foam concentrate |
Key features
- Construction options: Stainless steel / bronze
- Nominal size: 65 mm (2.5 inches)
- Fixed-flow choices: 225 / 450 lpm
Applications
Use within foam proportioning systems installations covered by the manufacturer reference. Confirm model compatibility, connections and operating conditions against the approved project design.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
