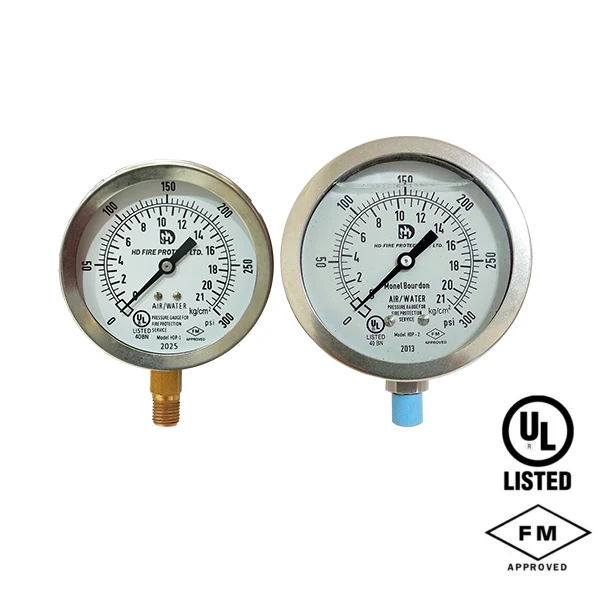

Product overview
The HD Fire Pressure Gauges forms part of the manufacturer's system valves & accessories portfolio. Its documented configuration choices are summarized below so the selected equipment can be coordinated with the water supply, connected components and operating environment. Confirm the exact model and supplied arrangement against the current manufacturer reference and project specification.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Pressure Gauges |
| Product type | Water-Based Systems |
| Product family | System Valves & Accessories |
| Subcategory | Valves / Switches / Accessories |
| Dial options | 90 / 100 mm |
| Indicated pressure range | 0–21 kg/cm² (0–300 PSI) |
| Case | Polished stainless steel |
| 90 mm variant | Phosphor-bronze Bourdon tube |
| 100 mm marine variant | Monel Bourdon tube, glycerine filled |
| Manufacturer-listed approvals | UL Listed and FM Approved; confirm the selected variant |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Dial options: 90 / 100 mm
- Indicated pressure range: 0–21 kg/cm² (0–300 PSI)
- Case: Polished stainless steel
Applications
Fire protection duties within the manufacturer application scope and approved project design. Confirm equipment compatibility and any component-specific listing before selection.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
