Product overview

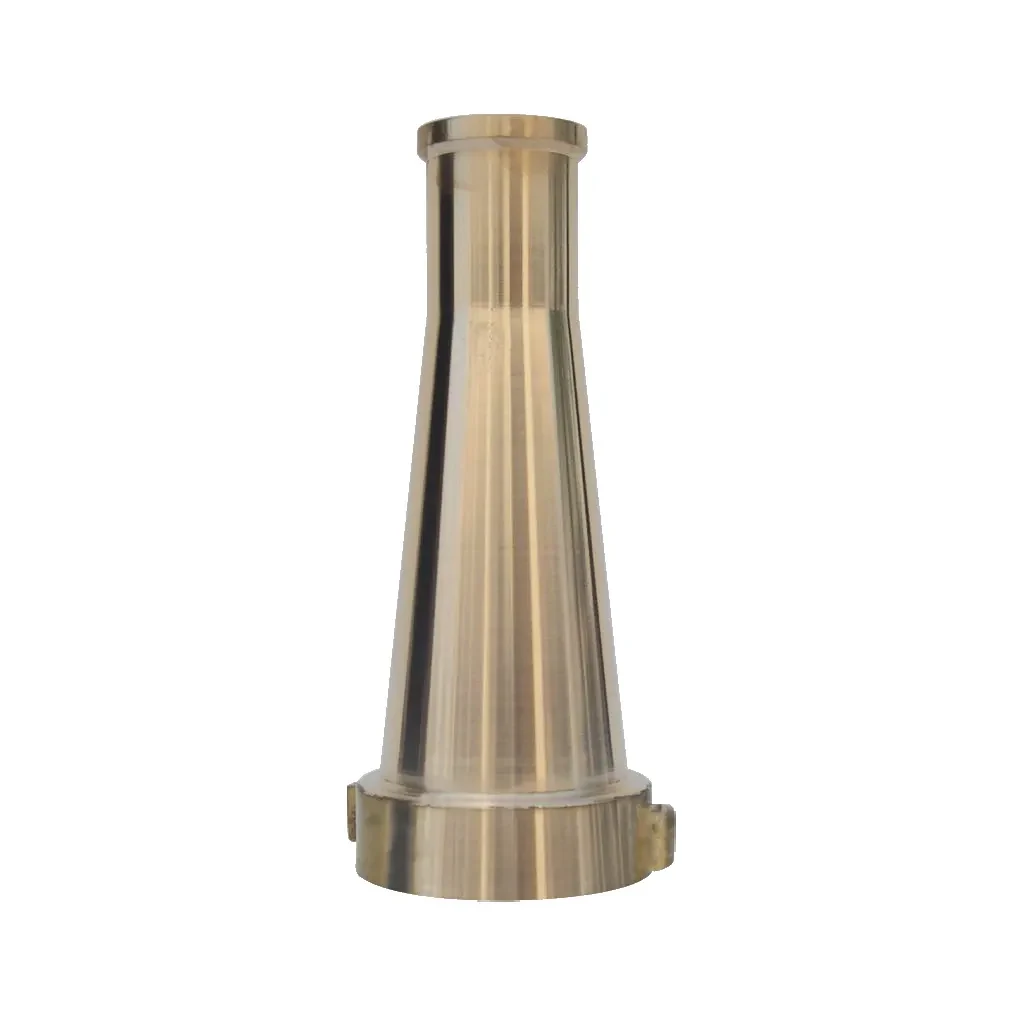

The HD Fire Solid Stream Nozzles is a component or assembly within the manufacturer's monitor nozzles range. The model-specific construction, interfaces and configuration choices are summarized below. Select the equipment together with the compatible valve, sprinkler or system arrangement described in the official technical reference.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Solid Stream Nozzles |
| Product type | Fire Fighting Equipment |
| Product family | Monitor Nozzles |
| Subcategory | Monitor Nozzles |
| Construction | Corrosion-resistant bronze |
| NW 500 / NW 700 inlet | 3 inch BSP female |
| NW 1000 inlet | 4 inch BSP female |
| Fixed-flow choices | 1,900 / 2,650 / 3,785 lpm (500 / 700 / 1,000 gpm) |
| Nozzle duty | Solid-stream monitor nozzle |
Key features
- Construction: Corrosion-resistant bronze
- NW 500 / NW 700 inlet: 3 inch BSP female
- NW 1000 inlet: 4 inch BSP female
Applications
Use within monitor nozzles installations covered by the manufacturer reference. Confirm model compatibility, connections and operating conditions against the approved project design.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
