Product overview

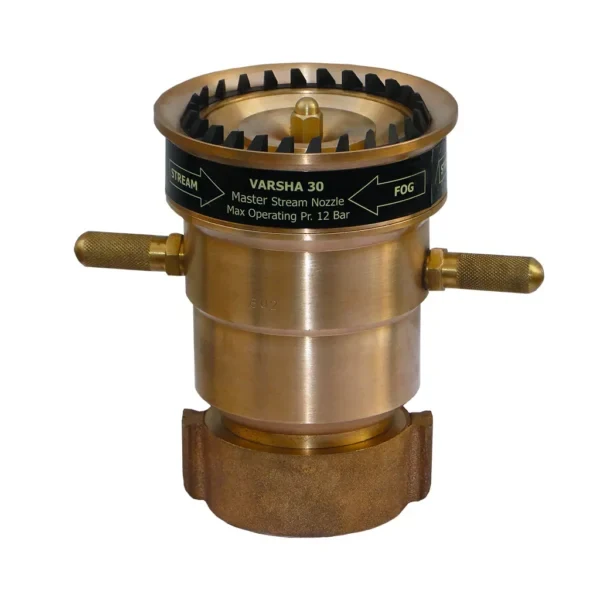

The HD Fire Varsha-30 Monitor Nozzle directs a fire-fighting stream using the selected monitor nozzle. Its documented waterway, mounting connections and movement define the assembly configuration. The pressure and approval scope depend on the exact monitor and nozzle combination; the scoped technical data below should be used with the current manufacturer reference.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Varsha-30 Monitor Nozzle |
| Product type | Fire Fighting Equipment |
| Product family | Monitor Nozzles |
| Subcategory | Monitor Nozzles |
| Construction options | Hard-anodized aluminium / corrosion-resistant bronze |
| Factory-set fixed flow range | 1,500–2,850 lpm (400–750 gpm) |
| Flow-setting pressure | 6.9 bar (100 psi); other settings 5.6–12 bar as stated by manufacturer |
| Inlet | 2.5 inch BSP swivel female |
| Discharge pattern | Straight stream / wide fog |
Key features
- Construction options: Hard-anodized aluminium / corrosion-resistant bronze
- Factory-set fixed flow range: 1,500–2,850 lpm (400–750 gpm)
- Flow-setting pressure: 6.9 bar (100 psi); other settings 5.6–12 bar as stated by manufacturer
Applications
Fixed water or foam stream applications covered by the selected monitor and nozzle combination. Coordinate flow, pressure, reaction loads and mounting with the project design.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
