Product overview

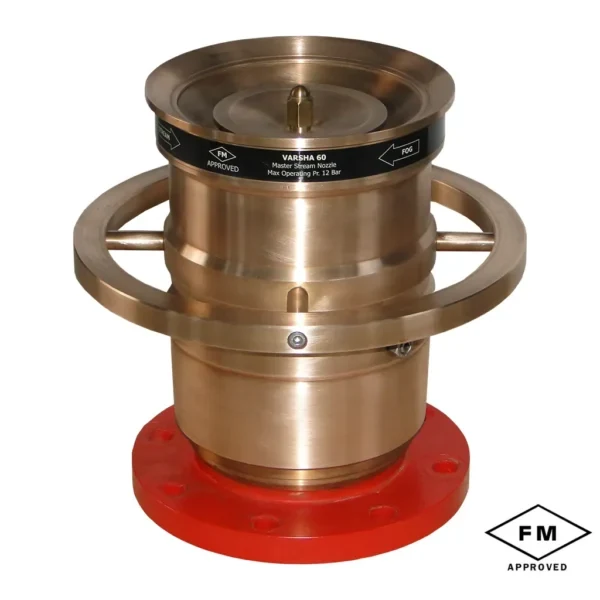

The HD Fire Varsha-60 Monitor Nozzle directs the fire-fighting stream through the nozzle arrangement specified for the model. Coordinate the inlet, nozzle, permitted movement and operating conditions as one assembly. The documented material and performance data distinguish this monitor from other configurations in the range.
Technical specifications
| Manufacturer | HD FIRE PROTECT |
|---|---|
| Product / system | Varsha-60 Monitor Nozzle |
| Product type | Fire Fighting Equipment |
| Product family | Monitor Nozzles |
| Subcategory | Monitor Nozzles |
| Connections / interface standard | 150 mm (6″) flanged inlet |
| Construction / material options | Bronze, stainless steel or hard-anodized aluminium |
| Manufacturer-listed approvals | FM Approved with water application |
| Flow-setting pressure | Flow set at 6.9 bar (100 psi) can be changed from 5.5 to 12 bar (80 to 175 psi), if required |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Defined pipework connection interface
Applications
Use within monitor nozzles applications covered by the manufacturer's technical reference and the approved project design. Confirm the product variant, operating conditions and compatible components before specifying the equipment.
Selection and project integration
Share the system drawings, protected hazard, equipment schedule and project specification with UDCT. Product selection should establish the required flow and pressure, pipework connections, materials, installation orientation and compatible components. Check the precise approval scope for the selected model, size and configuration against the current manufacturer documentation.
The product reference does not replace hydraulic calculations or the approved system design. For foam equipment, confirm the concentrate, proportioning range and discharge-device compatibility as one system. Use the manufacturer instructions for installation, commissioning and maintenance, and confirm the supplied configuration with UDCT before procurement.
