Product overview

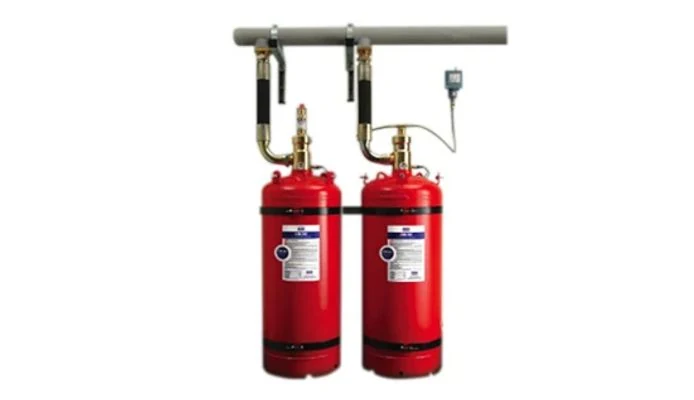

FM-200 25 Bar provides gaseous suppression using FM-200 agent for equipment and enclosed hazards where an electrically non-conductive medium is needed. The agent suppresses fire mainly through heat absorption. The marine configuration has its own approval scope and should be specified from the marine documentation.
Technical specifications
| Manufacturer | HYGOOD |
|---|---|
| Product / system | Marine FM-200 25 Bar System |
| Product type | Fire Suppression |
| Product family | Gaseous Suppression |
| Subcategory | Marine Suppression |
| Agent | FM-200 |
| System pressure designation | 25 bar |
| Protection approach | Gaseous suppression |
| Electrical characteristic | Non-conductive extinguishing agent |
| Manufacturer-listed approvals | Lloyd’s and DNV (manufacturer-listed marine scope) |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Heat absorption provides the principal extinguishing action
- Agent concentration must be maintained for the required protection period
- The complete system requires application-specific engineering
Applications
Marine equipment spaces within the documented marine approval scope.
Selection and project integration
Share the protected-space drawings, hazard description, equipment schedule and project specification with UDCT. The technical review should establish the selected system configuration, required quantity, installation constraints and interfaces with the detection and control equipment. For gaseous suppression, enclosure integrity, pressure relief, discharge acoustics and personnel safeguards must be assessed as part of the engineered design.
The published model designation is a product reference, not a final bill of materials. Agent quantities, pipe sizing, nozzle selection, storage arrangements and release logic depend on the approved design. Use the current manufacturer instructions for installation, testing and maintenance, and confirm availability with UDCT before procurement.
Manufacturer documents
Official product reference
View this product on the manufacturer website (opens in a new tab)
