Product overview

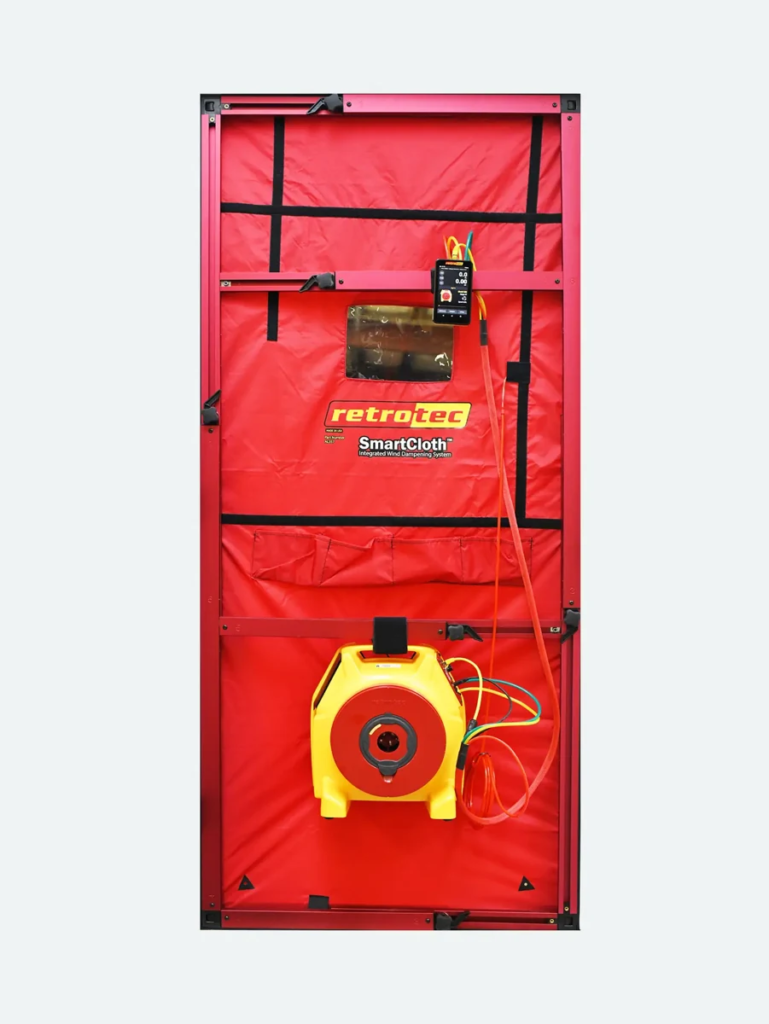

The Retrotec 300F Enclosure Integrity Test System is designed for enclosure-integrity testing of spaces protected by gaseous fire suppression. It combines a calibrated fan arrangement with pressure measurement equipment to assess leakage and support enclosure performance calculations. The model-specific table below records the manufacturer's published measurement and equipment data.
Technical specifications
| Manufacturer | RETROTEC |
|---|---|
| Product / system | 300F Enclosure Integrity Test System |
| Product type | Testing Equipment |
| Product family | Enclosure Integrity Testing |
| Subcategory | Door Fan / Enclosure Integrity |
| Equipment category | Enclosure-integrity testing |
| Model / system reference | 300F |
Manufacturer technical data
| Fan Model # | 300x | |||
| Flow Into: | CFM | liters/sec | m3/h | |
| Maximum Flow, CFM | Free Air | 798 | 376.6 | 1355.8 |
| 25 Pa | 719.8 | 339.7 | 1222.9 | |
| Minimum Flow | Range 102 – Standard | 164.3 | 77.5 | 279.1 |
| Range 74 – Standard | 28.1 | 13.3 | 47.7 | |
| Range 47 – Standard | 12.5 | 5.9 | 21.2 | |
| Range 29 – Optional | 5.2 | 2.5 | 8.8 | |
| Range 18 – Optional | 2.2 | 1.0 | 3.7 | |
| Range 11 – Optional | 0.9 | 0.4 | 1.5 | |
| Range 07 – Optional | 0.3 | 0.14 | 0.51 | |
| Range 03 – Optional | 0.1 | 0.04 | 0.17 | |
| Dimensions | 14″ × 12.5″ × 14.5″ (35.5 x 32 x 37 cm) | |||
| Weight | 14 lb (6.3 kg) | |||
| Flow Accuracy | +/-3% ISO 17025 accredited certificate available | |||
| Power Supply | Input: 120V/60Hz, 240V/50Hz, or 110V/50Hz Output: 48V DC/ 3.31A | |||
| Power Output | 0.213 hp, 159 Watts | |||
| Maximum Fan Calibration Interval | Every 5 years or sooner depending on standard | |||
| Digital Gauge Model | DM32X ( Click Here ) | |||
Key features
- Calibrated fan measurement equipment
- Model-specific operating range documented by the manufacturer
- Configuration and power options must match the ordered system
Applications
Room-integrity assessment for clean-agent and inert-gas protected enclosures, using the applicable test method and manufacturer software.
Selection and project integration
Share the test specification, expected leakage range, enclosure or duct dimensions and local power supply with UDCT. Selection should establish the appropriate fan arrangement, measuring ranges, adapters, pressure gauge and software licence. Confirm which accessories are included with the ordered kit and which require separate selection.
Testing requires the correct calibration records, a suitable test setup and personnel familiar with the applicable procedure. Use the current manufacturer operating instructions and record the selected configuration in the test report. A quoted equipment range does not replace the conditions and limitations in the technical documentation.
