TECHNICAL PRODUCT
RFII HSW Sprinkler
Explore technical details, applications and product documentation for this system.
Request product supportPRODUCT OVERVIEW
TECHNICAL REFERENCE & APPLICATION

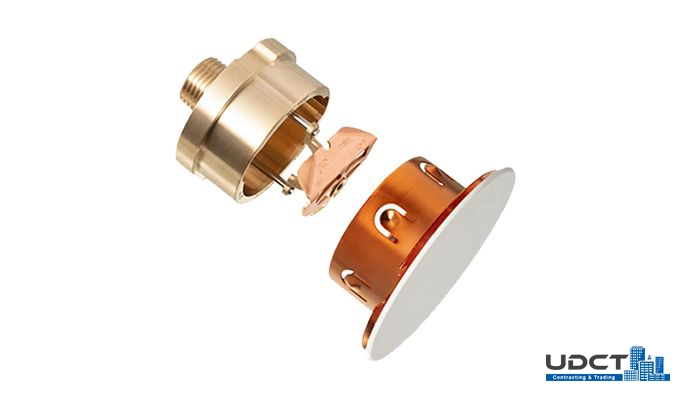

TYCO Model RFII HSW is a 5.6 K-factor concealed horizontal sidewall sprinkler with a flat wall cover for design-sensitive interiors. Its approved uses vary by response configuration and occupancy. Check the selected cover plate, listing and installation criteria in manufacturer data sheet TFP185.
TECHNICAL DATA
PRODUCT SPECIFICATIONS
Key technical data available from the current product reference.
- Manufacturer
- TYCO Fire - Johnson Controls
- Orientation
- Concealed, Horizontal Sidewall
- K-Factor
- 5.6
- Temperature Rating
- Up to 212°F
- Response
- Quick
- Occupancy Type
- Light Hazard, Ordinary Hazard
- Listings & Approvals
- UL and C-UL Listed; FM Approved
- SIN Numbers
- TY3521
- Thread
- ½-inch
- Wrench
- W37
- Note
- See Technical Data Sheet for details
FEATURES
DESIGNED FOR PROJECT INTEGRATION
Key features recorded for this product.
250 psi (17,2 bar) maximum pressure rating
UL and C-UL Listed, FM Approved (Standard Response only)
For 5.6 K-factor horizontal sidewall flat plate concealed sprinklers (TY3322, TY4322) see TFP280 for technical information and listing details
TECHNICAL SELECTION
BEFORE SPECIFYING THIS PRODUCT
Confirm the design hazard, required flow and pressure, connection size, installation orientation and the listed or approved configuration. Valve and sprinkler selection must also align with the hydraulic calculation and the maintenance access available on site.
Use this page as an introduction to the recorded product, then verify the current manufacturer documentation and project-specific submittal before procurement. Share the drawing, specification, quantity and location with UDCT for a review of suitability, availability and integration. Explore related product families or request technical support.
