TECHNICAL PRODUCT
RFII Standard Coverage Sprinkler
Explore technical details, applications and product documentation for this system.
Request product supportPRODUCT OVERVIEW
TECHNICAL REFERENCE & APPLICATION

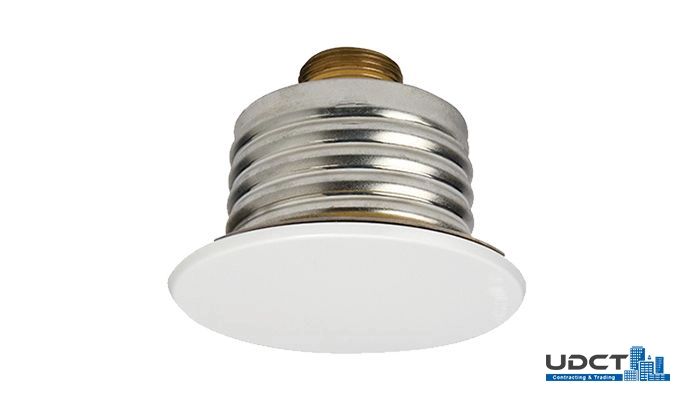

TYCO Series RFII is a 5.6 K-factor concealed pendent sprinkler with a flat cover plate for architecturally sensitive ceilings. Quick-response and standard-response versions are available. Confirm the selected configuration, listings and installation requirements against manufacturer data sheet TFP181.
TECHNICAL DATA
PRODUCT SPECIFICATIONS
Key technical data available from the current product reference.
- Manufacturer
- TYCO Fire - Johnson Controls
- Orientation
- Concealed Pendent
- K-Factor
- 5.6
- Temperature Rating
- Up to 200°F
- Response
- Quick, Standard
- Occupancy Type
- Light Hazard, Ordinary Hazard
- Listings & Approvals
- UL and C-UL Listed; NYC Approved
- SIN Numbers
- TY3531, TY3551
- Thread
- ½-inch
- Wrench
- RFII
- Note
- See Technical Data Sheet for details
FEATURES
DESIGNED FOR PROJECT INTEGRATION
Key features recorded for this product.
UL and C-UL Listed, FM, NYC, VdS, and LPCB Approved
For 5.6 K-Factor Royal Flush II concealed pendent sprinklers quick & standard response, standard coverage (TY3531, TY3551), see TFP181 for technical information and listing details
TECHNICAL SELECTION
BEFORE SPECIFYING THIS PRODUCT
Confirm the design hazard, required flow and pressure, connection size, installation orientation and the listed or approved configuration. Valve and sprinkler selection must also align with the hydraulic calculation and the maintenance access available on site.
Use this page as an introduction to the recorded product, then verify the current manufacturer documentation and project-specific submittal before procurement. Share the drawing, specification, quantity and location with UDCT for a review of suitability, availability and integration. Explore related product families or request technical support.
