Product overview

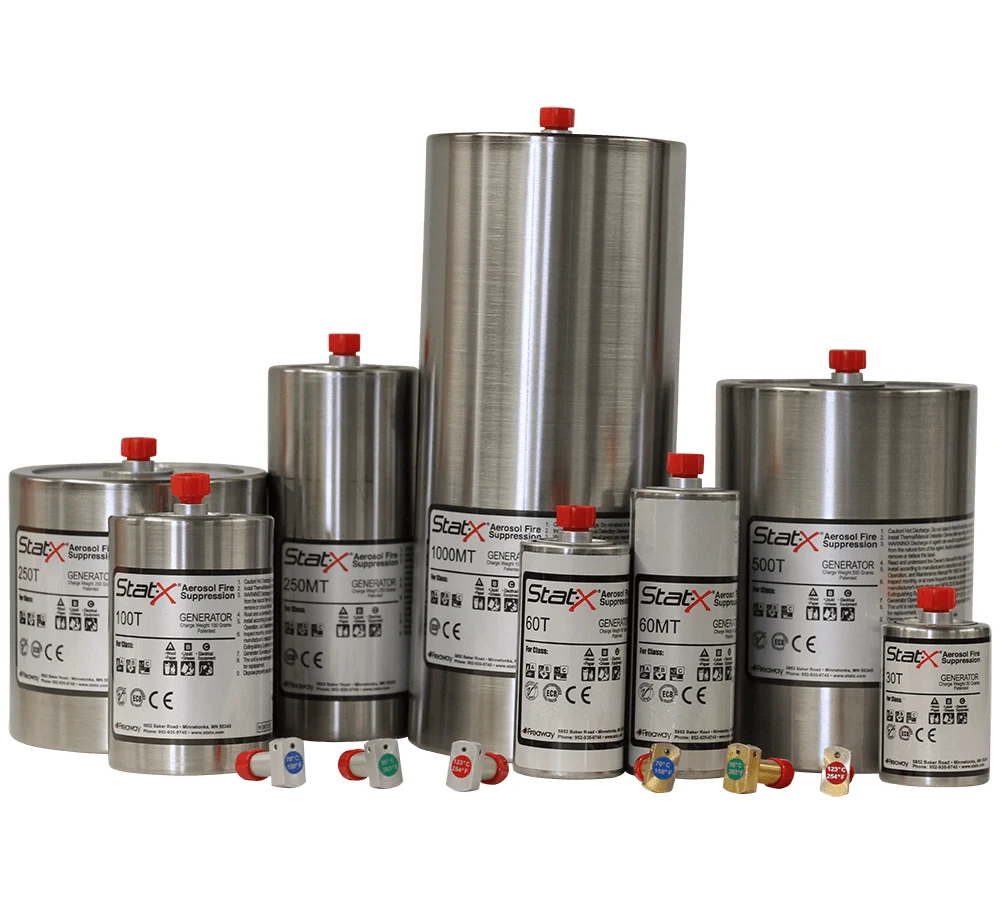

Stat-X 1000T Thermal Unit is a self-contained condensed-aerosol generator with 1000 grams of aerosol-forming material. Its integrated thermal actuator initiates discharge when the selected temperature set point is reached, without a separate releasing panel or external electrical supply. Housing dimensions, generator weight and the published discharge duration below are taken from the specific model column in the manufacturer table. Select the actuator temperature, mounting and generator arrangement for the approved application.
Technical specifications
| Manufacturer | STAT-X |
|---|---|
| Product / system | Stat-X 1000T Thermal Unit |
| Product type | Fire Suppression |
| Product family | Condensed Aerosol |
| Subcategory | Thermal Unit |
| Agent technology | Potassium-based condensed aerosol |
| Model | 1000T |
| Actuation | Automatic thermal actuator |
| Thermal actuator choices | 70°C / 95°C / 123°C |
| Housing | Stainless steel |
| External electrical power | Not required for self-contained actuation |
| Aerosol Mass: grams | 1000 |
| Generator Weight: g (lbs) | 7100 (15.7) |
| Height: mm (inches) | 171 (6.7) |
| Diameter: mm (inches) | 203 (8.0) |
| Discharge Time:(s) | 8 |
| Operating / storage temperature | 0°C to +54°C |
| Manufacturer model listing marks | UL Listed, UL-EU Listed and MED Listed; confirm current model and configuration scope |
Key features
- Self-contained generator
- Three thermal actuator temperature choices
- No external electrical supply for actuation
Applications
Electrical and control cabinets, switchgear cubicles, machine enclosures and other smaller equipment spaces within the manufacturer design criteria.
Selection and project integration
Share the protected enclosure dimensions, ventilation, equipment layout and required actuation method with UDCT. Selection should confirm the exact generator model, application density, distribution, mounting clearances and any detection or releasing-panel interface against the current manufacturer design documentation.
Published aerosol mass and generator dimensions do not define the protected volume by themselves. Confirm the model listing, environmental conditions and personnel safeguards for the installation. Portable professional-response tools have a different role from fixed engineered systems and require the manufacturer training and established operating procedures.
