TY L Sprinklers
Explore technical details, applications and product documentation for this system.
Request product supportPRODUCT OVERVIEW
TECHNICAL REFERENCE & APPLICATION

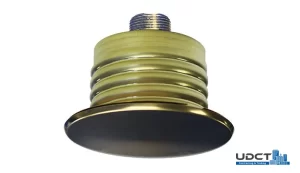

TYCO Series TY-L standard-response solder-link sprinklers provide standard coverage in upright, pendent and recessed pendent configurations. Model-specific K-factors and finishes support different commercial system designs. Verify hazard suitability, approvals and installation criteria in manufacturer data sheet TFP110.
TECHNICAL DATA
PRODUCT SPECIFICATIONS
Key technical data available from the current product reference.
- Manufacturer
- TYCO Fire - Johnson Controls
- Orientation
- Upright, Pendent, Recessed Pendent, Horizontal Sidewall
- K-Factor
- Up to 8.0
- Temperature Rating
- Up to 280°F
- Response
- Standard
- Occupancy Type
- Light Hazard, Ordinary Hazard, Extra Hazards
- Listings & Approvals
- UL and C-UL Listed; FM and LPCB Approved
- SIN Numbers
- TY3311, TY3111, TY3211, TY4111, TY4211, TY4811, TY4911
- Thread
- Up to ¾-inch
- Wrench
- W-Type10
- Note
- See Technical Data Sheet for details
FEATURES
DESIGNED FOR PROJECT INTEGRATION
Key features recorded for this product.
For 5.6 K-factor horizontal sidewall sprinkler (TY3311), see TFP120 for technical information and listing details
For 5.6 and 8.0 K-factor upright, pendent, and recessed pendent sprinklers (TY3111, TY3211, TY4111, TY4211, TY4811, TY4911), see TFP110 for technical information and listing details
TECHNICAL SELECTION
BEFORE SPECIFYING THIS PRODUCT
Confirm the design hazard, required flow and pressure, connection size, installation orientation and the listed or approved configuration. Valve and sprinkler selection must also align with the hydraulic calculation and the maintenance access available on site.
Use this page as an introduction to the recorded product, then verify the current manufacturer documentation and project-specific submittal before procurement. Share the drawing, specification, quantity and location with UDCT for a review of suitability, availability and integration. Explore related product families or request technical support.
