Product overview

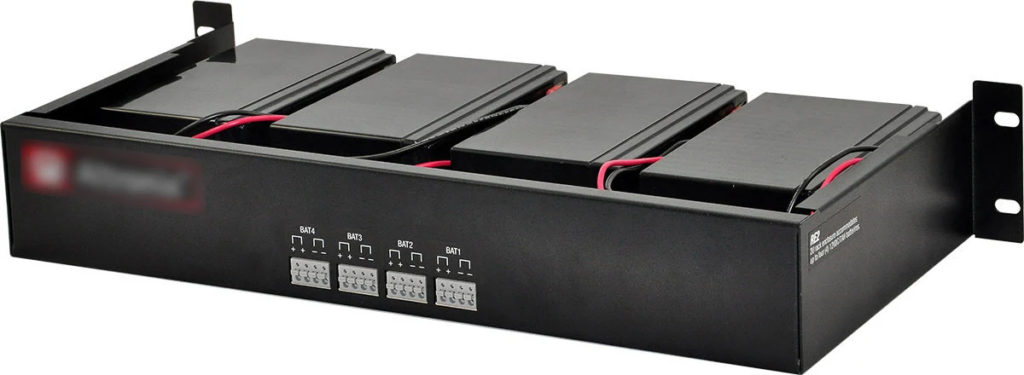

The VES VF5466-00 is a 2U battery enclosure for a standard EIA 19 inch equipment rack. It accommodates up to four 12 V DC, 7 Ah batteries, with the configured arrangement determining whether the application uses 12 V DC or 24 V DC. This product is an enclosure and connection arrangement; the battery selection, charging compatibility and system standby calculation remain part of the project design.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | 19 in Rack Mount Battery Enclosure 2U |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Model | VF5466-00 |
| Rack format | 2U chassis for standard EIA 19 inch rack |
| Battery accommodation | Up to four 12 V DC, 7 Ah batteries |
| Configured capacity | 28 Ah at 12 V DC / 14 Ah at 24 V DC |
| Dimensions | 486 mm W x 83 mm H x 216 mm D; manufacturer also quotes 19.12 x 3.25 x 8.4 inches |
| Weight | 4.72 kg (10.4 lb) |
| Construction | 19 gauge black enclosure |
| Terminals | Quick connect, 14–20 AWG wiring |
Key features
- Model: VF5466-00
- Rack format: 2U chassis for standard EIA 19 inch rack
- Battery accommodation: Up to four 12 V DC, 7 Ah batteries
Applications
Rack-mounted fire alarm power arrangements requiring a compatible external battery enclosure. Confirm battery supply, rack clearance and charger suitability in the equipment schedule.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
