Product overview

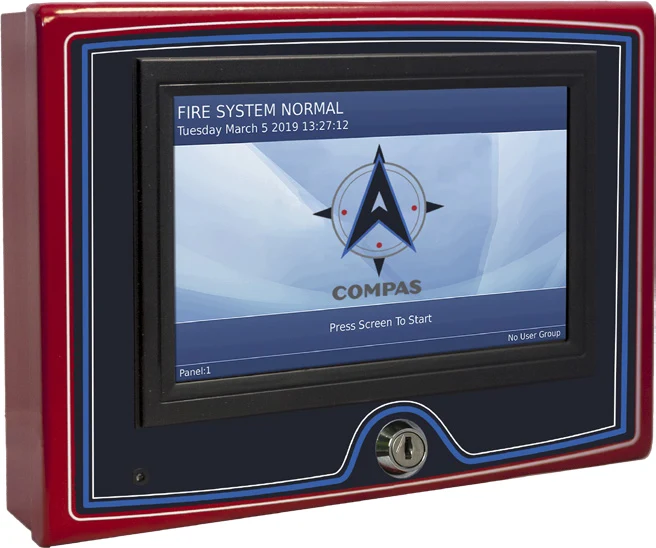

The VES Compas Network Vision Annunciator provides a remote colour touchscreen interface for a compatible fire alarm network. It can be configured to reproduce panel functions or serve as a display-only annunciator where operating controls should be restricted. The documented supply range is 21–30 V DC, with surface and semi-flush enclosure choices. Network quantity, wiring and permitted functions must match the system design.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | Compas Network Vision Annunciator |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Product codes | CRC00NC-10 red / CRC00NC-40 gray / CRC00NC-60 black |
| Supply voltage | 21–30 V DC |
| Display | 7 inch, 800 x 480 colour resistive touchscreen |
| Maximum network quantity | 31 annunciators |
| Dimensions | 235 x 170 x 55 mm (9.25 x 6.7 x 2.2 inches) |
| Construction | 18 SWG, 1.2 mm mild sheet steel |
| Mounting choices | Surface / semi-flush |
| Finish | Epoxy powder coating |
| Maximum published weight | 2 kg (4.4 lb) |
| Enclosure rating | IP30 |
Key features
- Product codes: CRC00NC-10 red / CRC00NC-40 gray / CRC00NC-60 black
- Supply voltage: 21–30 V DC
- Display: 7 inch, 800 x 480 colour resistive touchscreen
Applications
Remote fire alarm indication at suitable reception points, nursing stations and other system-monitoring locations within the compatible network design.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
