Product overview

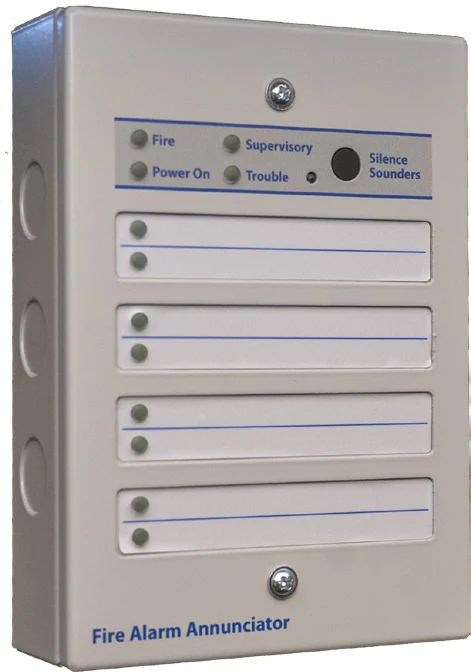

The VES Elite CP Annunciator extends fire, trouble and supervisory indications from a compatible Elite CP panel to a remote location. Two, four and eight-zone versions use a supervised RS485 data connection and a separate 24 V DC supply. The selected annunciator must match the panel arrangement, with cable distance, supply capacity and the maximum device count checked together.
Technical specifications
| Brand / product range | VES |
|---|---|
| Product / system | Elite CP Annunciator |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Conventional |
| Model range | VF1885 two / four / eight-zone annunciators, red or gray |
| Compatible platform | Elite CP |
| Input supply | 24 V DC |
| Standby / maximum alarm current | 14 mA / 40 mA at 24 V DC |
| Maximum annunciators | Seven on compatible AUX supply and RS485 bus |
| Connection | Four wires: power plus two-wire RS485 data |
| Maximum panel distance | 3,900 ft / 1,200 m with specified Belden 9271 cable |
| Dimensions W x H x D | 7 1/3 x 5 1/5 x 2 1/5 inches |
| Weight | 2 lb |
| Operating temperature | 32°F to 120°F |
| Humidity | Up to 93%, non-condensing |
| Manufacturer-listed approvals | UL 864, selected configuration applies |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Model range: VF1885 two / four / eight-zone annunciators, red or gray
- Compatible platform: Elite CP
- Input supply: 24 V DC
Applications
Remote status indication at suitable staffed locations within a compatible conventional Elite CP fire alarm design.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
