Product overview

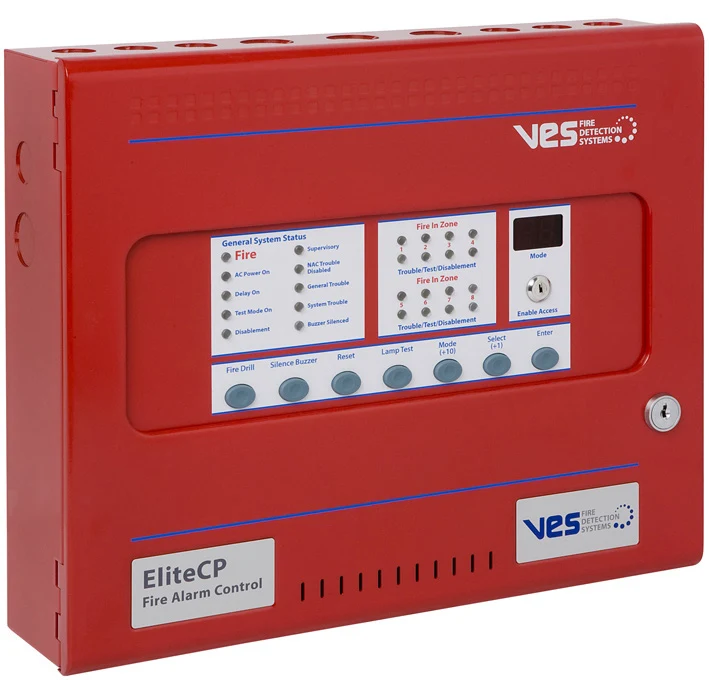

The VES Elite CP is a conventional fire alarm control-panel range with two, four or eight initiating zones. Each zone can be configured for the supported fire or supervisory functions, while two notification appliance circuits provide a separately limited total alarm load. Model selection determines the zone quantity, mains supply, enclosure colour and optional dialer. Battery and auxiliary-load calculations remain part of the approved system design.
Technical specifications
| Brand / product range | VES |
|---|---|
| Product / system | Elite CP Conventional Panel |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Conventional |
| Panel range | 2 / 4 / 8 initiating zones |
| Model families | VF1842 / VF1844 / VF1848 without dialer; VF1852 / VF1854 / VF1858 with dialer |
| Supply choices | 120 V AC / 240 V AC, selected model applies |
| DC power supply | 24 V, 5 A |
| Notification outputs | Two NACs, 2.5 A each / 4 A total maximum |
| Auxiliary output | Resettable, 0.3 A |
| Relays | Fire / trouble / supervisory, each 1 A at 30 V DC |
| Maximum battery size | Two 12 V, 12 Ah batteries; standby calculation determines selection |
| Dimensions W x H x D | 14.5 x 12.2 x 4.25 inches |
| Enclosure | 18 gauge mild steel, epoxy powder coated, red / gray |
| Operating temperature | 23°F to 122°F |
| Humidity | Up to 95%, non-condensing |
| Manufacturer-listed approvals | UL 864, exact model and configuration applies |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Panel range: 2 / 4 / 8 initiating zones
- Model families: VF1842 / VF1844 / VF1848 without dialer; VF1852 / VF1854 / VF1858 with dialer
- Supply choices: 120 V AC / 240 V AC, selected model applies
Applications
Conventional fire alarm installations requiring a defined zone count, compatible initiating devices and coordinated notification circuits.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
