Product overview

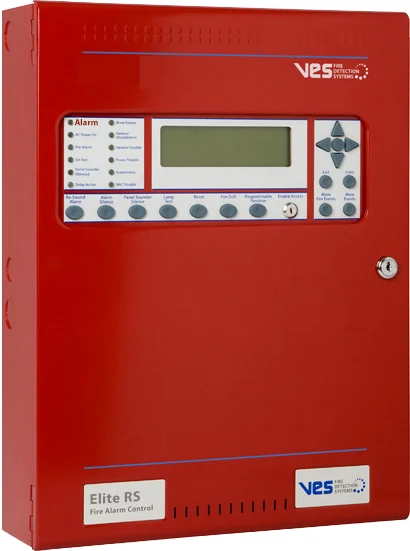

The VES Elite RS-H 1–2 Loop Panel is an addressable fire alarm control platform for compatible detection, indication and system-control equipment. The panel arrangement, loop modules, power supply and optional interfaces define the supplied configuration. The technical data below separates the documented capacities and enclosure choices so the equipment can be coordinated with the approved fire alarm design.
Technical specifications
| Manufacturer | Kentec Electronics Ltd. |
|---|---|
| Brand / product range | VES |
| Product / system | Elite RS-H 1–2 Loop Panel |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Core models | VF0810-xx one loop / VF0820-xx two loops |
| Primary SLC point capacity | 127 with one loop / 254 with two loops |
| Published address / subaddress capacity | Up to 800 points |
| Power supply | 24 V DC, 5.25 A |
| AC supply choices | 120 / 240 V AC, 50 / 60 Hz |
| NACs | Two programmable circuits; 2.3 A each, 3.1 A total maximum |
| Auxiliary outputs | Two 24 V DC outputs, 360 mA each |
| Dimensions | 14.5 inches W x 18.9 inches H x 4.25 inches D |
| Weight without batteries | 20 lb |
| Serial interfaces | RS485 expansion / RS232 PC port |
| Networking | Optional eNET networking |
| Enclosure colours | Red / gray |
Key features
- Core models: VF0810-xx one loop / VF0820-xx two loops
- Primary SLC point capacity: 127 with one loop / 254 with two loops
- Published address / subaddress capacity: Up to 800 points
Applications
Addressable fire detection and alarm installations using the compatible device protocol, circuit arrangements and power calculations identified for the selected panel.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
