Product overview

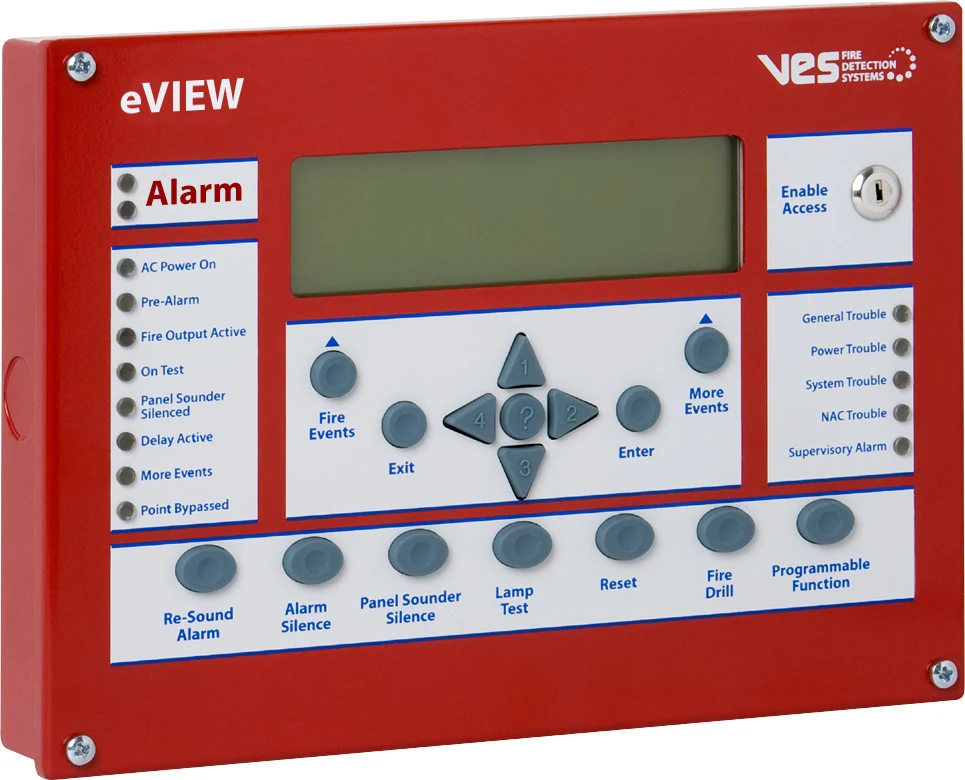

The VES eVIEW VF1172 is a serial annunciator that extends indications from compatible Elite and Elite RS fire alarm panels to additional locations. It combines a graphic LCD, status LEDs and an internal sounder in a compact enclosure. The documented network supports up to 15 annunciators per compatible panel, with available controls determined by the selected panel and configuration.
Technical specifications
| Manufacturer | Kentec Electronics Ltd. |
|---|---|
| Brand / product range | VES |
| Product / system | eVIEW Analog Addressable Serial Annunciator |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Models | VF1172-10 red / VF1172-40 gray |
| Supply voltage | 21–30 V DC |
| Display | 240 x 64 pixel graphic LCD |
| Maximum annunciators | 15 per compatible Elite / Elite RS control panel |
| Serial connection | Two-core RS485; up to 3,937 ft total cable length |
| Quiescent current during AC failure | 0.03 A |
| Dimensions | 10.4 inches W x 7.5 inches H x 1.6 inches D |
| Weight | 3.5 lb |
| Maximum terminal capacity | 12 AWG |
| Optional recess kit | VF1173-10 red / VF1173-40 gray |
| Controls | Replicates Elite panel controls; verify functions for the selected panel |
Key features
- Models: VF1172-10 red / VF1172-40 gray
- Supply voltage: 21–30 V DC
- Display: 240 x 64 pixel graphic LCD
Applications
Remote fire alarm indication at entrance halls, nursing stations and other staffed locations within the compatible system design.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
