Product overview

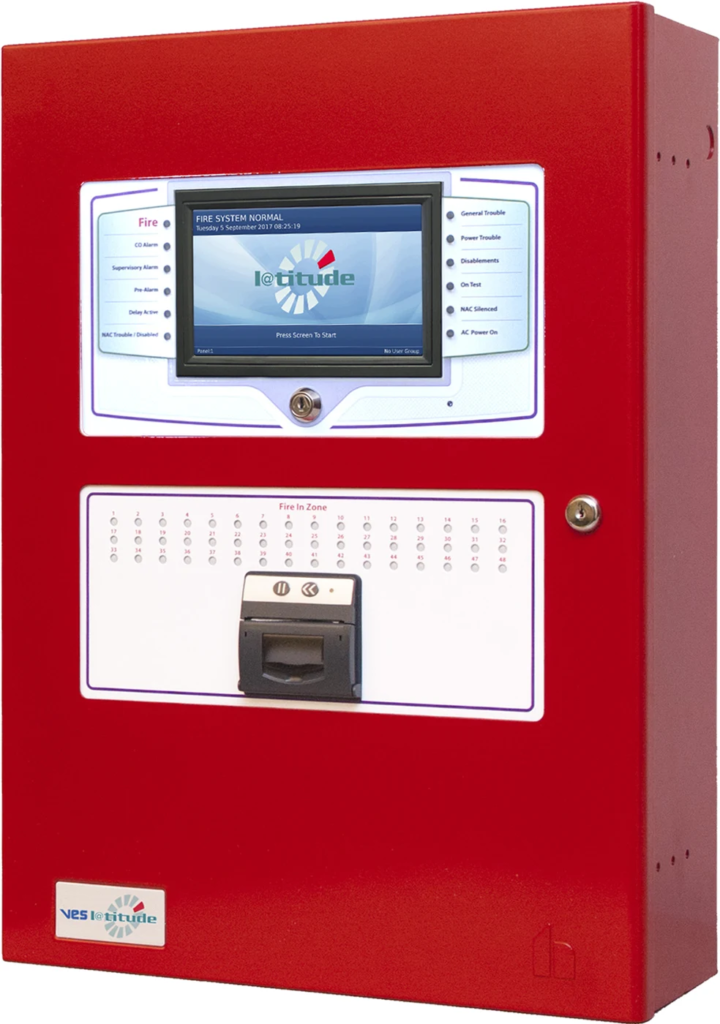

The VES L@titude Fire Alarm Control Panel is an addressable fire alarm control platform for compatible detection, indication and system-control equipment. The panel arrangement, loop modules, power supply and optional interfaces define the supplied configuration. The technical data below separates the documented capacities and enclosure choices so the equipment can be coordinated with the approved fire alarm design.
Technical specifications
| Manufacturer | Kentec Electronics Ltd. |
|---|---|
| Brand / product range | VES |
| Product / system | L@titude Fire Alarm Control Panel |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Panel range | 2–8 loop / 2–16 loop enclosure versions |
| Documented loop configuration | Hochiki protocol modules in the referenced model selection |
| Detection loop current | 400 mA per loop |
| Published subaddress capacity | 400 per loop / 800 per dual-loop module |
| Display | 7 inch, 800 x 480 colour resistive touchscreen |
| Power supply choices | 24 V DC, 5.25 A / 10.25 A |
| Supply voltage choices | 120 V AC / 240 V AC; selected power-supply configuration applies |
| NAC arrangement | Four Class B / two Class A circuits |
| Programmable interfaces | Three inputs / five relay outputs |
| Operating temperature | −5°C to +49°C |
| Humidity | Up to 95%, non-condensing |
| Manufacturer-listed approvals | UL Listed, Tenth Edition; FM Approved, selected configuration scope applies |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Panel range: 2–8 loop / 2–16 loop enclosure versions
- Documented loop configuration: Hochiki protocol modules in the referenced model selection
- Detection loop current: 400 mA per loop
Applications
Addressable fire detection and alarm installations using the compatible device protocol, circuit arrangements and power calculations identified for the selected panel.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
