Product overview

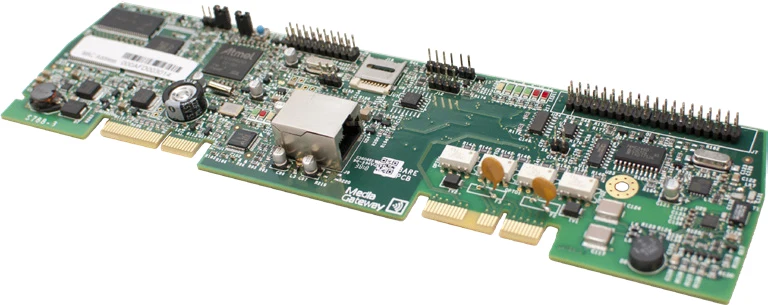

The VES S788 Media Gateway Panel Module provides telephone and Ethernet reporting interfaces to a compatible remote monitoring service for the L@titude fire alarm control platform. This plug-in panel module forms part of a compatible control-panel configuration. Selection must coordinate its electrical ratings, supported functions and circuit arrangements with the panel power budget and approved cause-and-effect schedule.
Technical specifications
| Manufacturer | Kentec Electronics Ltd. |
|---|---|
| Brand / product range | VES |
| Product / system | S788 Media Gateway Panel Module |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Modules |
| Model | S788 |
| Compatible platform | L@titude fire alarm control panel |
| Telephone interface | One or two telephone lines |
| Reporting formats | SIA / Contact ID |
| IP reporting | Sur-Gard Fibro over Ethernet |
| Supply | 24 V DC |
| Quiescent / maximum current | 114 mA / 114 mA, as stated in the sheet |
| Dimensions | 234.6 x 62.8 mm (9.25 x 2.5 inches) |
| Operating temperature | −5°C to +49°C |
| Humidity | Up to 95%, non-condensing |
Key features
- Model: S788
- Compatible platform: L@titude fire alarm control panel
- Telephone interface: One or two telephone lines
Applications
Remote monitoring-centre reporting using the documented telephone formats or Sur-Gard Fibro IP interface, subject to receiving-service compatibility.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
