Product overview

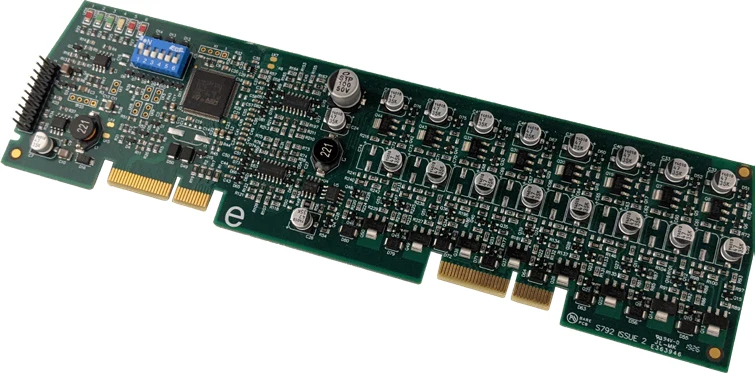

The VES S792 8 Channel Conventional Zone Panel Module adds supervised conventional detection-zone inputs to a compatible L@titude panel. Its circuit role and electrical limits must be coordinated with the compatible panel and approved fire alarm design. The model-specific data below distinguishes the interface configuration, supply requirements and installation conditions so the exact version can be selected for the project.
Technical specifications
| Manufacturer | Kentec Electronics Ltd. |
|---|---|
| Brand / product range | VES |
| Product / system | S792 8 Channel Conventional Zone Panel Module |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Modules |
| Model | S792 |
| Compatible platform | L@titude fire alarm control panel |
| Detection circuits | Eight supervised conventional Class B circuits |
| Class A option | Pairs of circuits may form one Class A circuit, following the manufacturer design |
| Detector capacity | Up to 20 compatible conventional detectors / approved devices per circuit |
| Supply voltage | 21–30 V DC |
| Quiescent / maximum current | 70 mA / 210 mA |
| Maximum line impedance | 10.1 ohms |
| Dimensions | 234.6 x 62.8 mm |
| Operating temperature | −5°C to +49°C |
| Humidity | Up to 95%, non-condensing |
| Approval note | Referenced March 2021 sheet includes an approval-pending mark; obtain current configuration evidence |
Key features
- Model: S792
- Compatible platform: L@titude fire alarm control panel
- Detection circuits: Eight supervised conventional Class B circuits
Applications
Integration of compatible conventional detection circuits into the L@titude platform, within detector, line-impedance and power limits.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
