Product overview

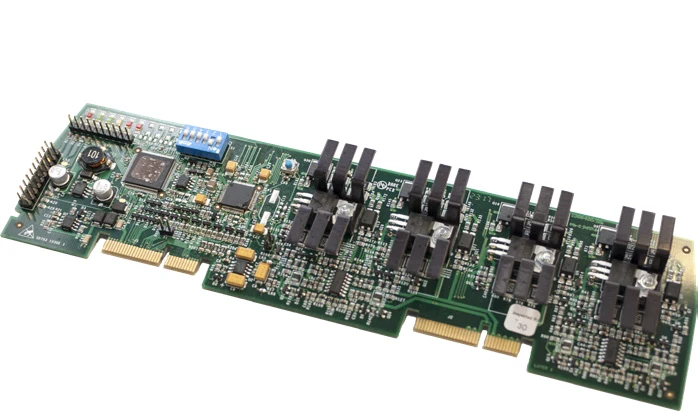

The VES S793 4 Channel NAC Panel Module adds four individually programmable supervised notification appliance circuits for the L@titude fire alarm control platform. This plug-in panel module forms part of a compatible control-panel configuration. Selection must coordinate its electrical ratings, supported functions and circuit arrangements with the panel power budget and approved cause-and-effect schedule.
Technical specifications
| Manufacturer | Kentec Electronics Ltd. |
|---|---|
| Brand / product range | VES |
| Product / system | S793 4 Channel NAC Panel Module |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Modules |
| Model | S793 |
| Compatible platform | L@titude fire alarm control panel |
| Outputs | Four individually programmable supervised NAC outputs |
| Circuit configuration | Class A / Class B, according to manufacturer wiring design |
| Supply voltage | 21–30 V DC |
| Quiescent current | 30 mA |
| Maximum module current | 50 mA, separately from NAC load |
| Published current per output | 2.3 A per channel; complete supply and total load limits must be checked |
| Permitted line drop | 4 V, load-dependent |
| Dimensions | 234.6 x 62.8 mm |
| Operating temperature | −5°C to +49°C |
| Humidity | Up to 95%, non-condensing |
| Approval note | Referenced March 2021 sheet includes an approval-pending mark; obtain current evidence for the selected configuration |
Key features
- Model: S793
- Compatible platform: L@titude fire alarm control panel
- Outputs: Four individually programmable supervised NAC outputs
Applications
Expansion of compatible fire alarm notification circuits where additional supervised NAC outputs are required by the approved design.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
