Product overview

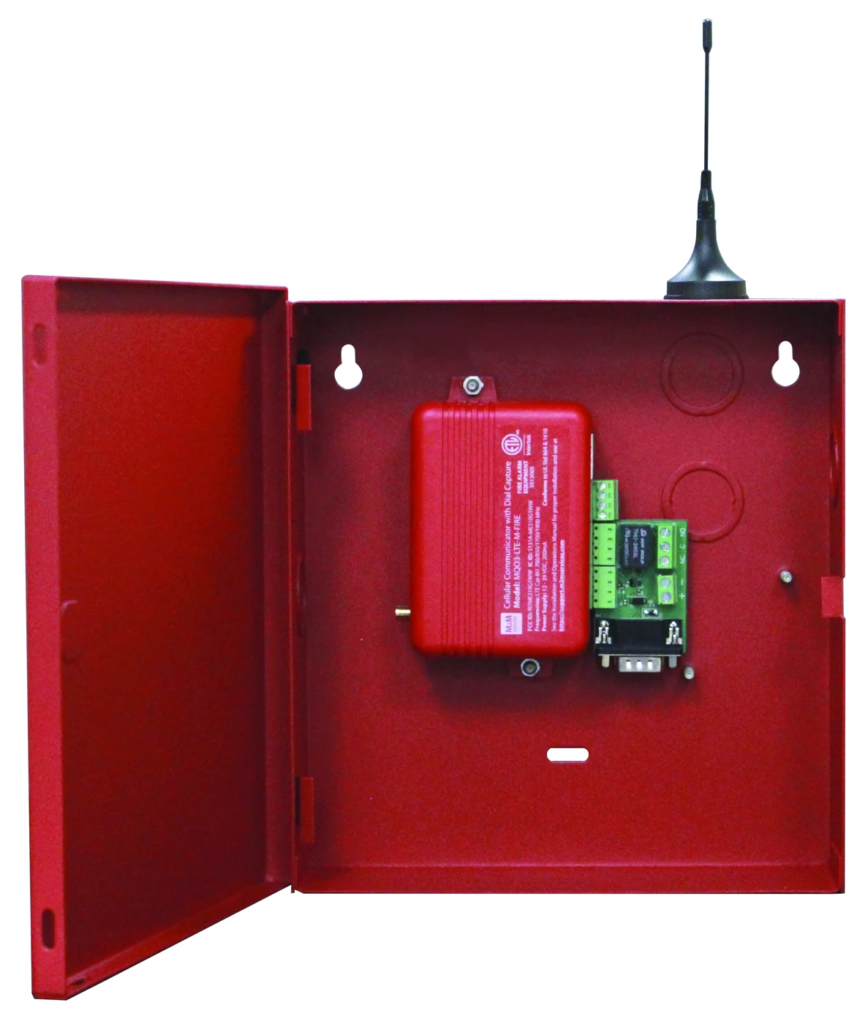

The VES VF1660-00 Pathway Pro 5G Cellular Communicator provides a cellular reporting interface for the compatible Elite RS fire alarm platform. The referenced sheet identifies North American carrier configurations; it does not establish local-network suitability in Saudi Arabia, the UAE or Egypt. Select the precise communicator, reporting service, panel interface and regional approvals together before considering an installation.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF1660-00 Pathway Pro 5G Cellular Communicator |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Model | VF1660-00 |
| Compatible control panel | Elite RS, subject to required firmware and approved integration |
| Network technology | LTE CAT-M1 |
| Documented network region | AT&T / Verizon, North America; local-network compatibility is not established by this sheet |
| Supply voltage | 12–29 V DC |
| Current consumption | 60 mA standby / 200 mA peak |
| Operating temperature | 0°C to +49°C |
| Relative humidity | 1–85%, non-condensing |
| Dimensions | 8.0 inches L x 7.48 inches H x 1.75 inches D |
| Published weight | 1.20 kg (2.65 lb) |
| Reporting formats | Contact ID / SIA |
| Manufacturer-referenced approvals | ETL Listed, FCC and CSFM; UL 864 compliance stated by manufacturer |
Key features
- Model: VF1660-00
- Compatible control panel: Elite RS, subject to required firmware and approved integration
- Network technology: LTE CAT-M1
Applications
Supervising-station reporting for compatible Elite RS systems where the specified carrier service, product approvals and local requirements have been confirmed.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
