Product overview

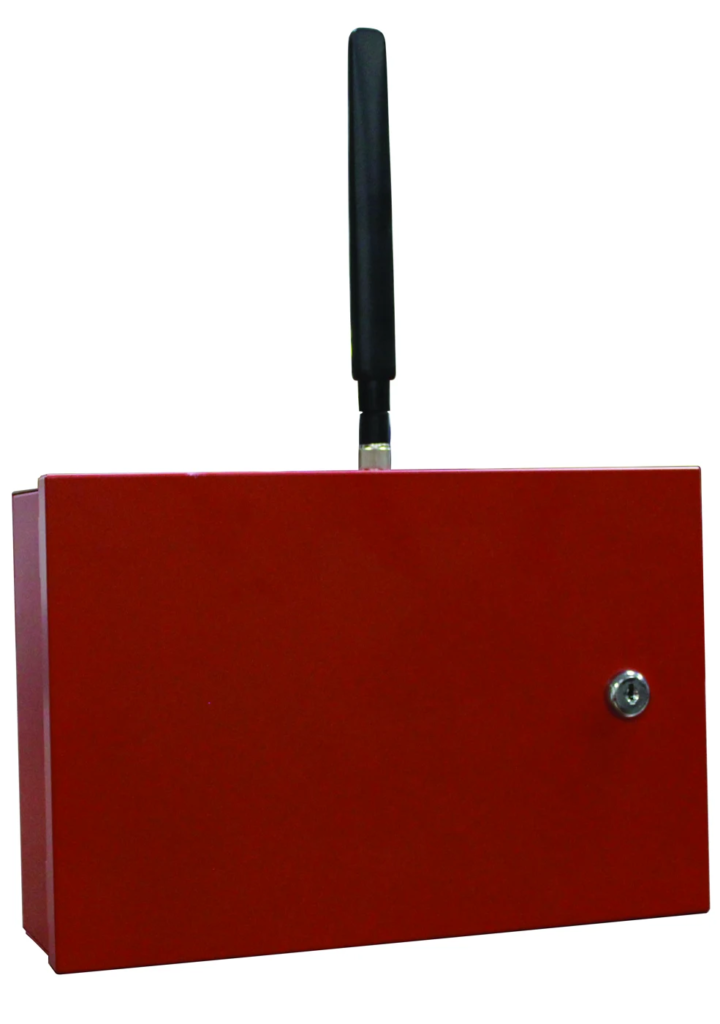

The VES VF1661 / VF1662 5G Communicator provides a cellular reporting interface for the compatible Elite RS fire alarm platform. The referenced sheet identifies North American carrier configurations; it does not establish local-network suitability in Saudi Arabia, the UAE or Egypt. Select the precise communicator, reporting service, panel interface and regional approvals together before considering an installation.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF1661 / VF1662 5G Communicator |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Control Panels / Network |
| Models | VF1661-00 Comm 5G-A / VF1662-00 Comm 5G-V |
| Technology provider | Telguard |
| Compatible panel | Elite RS serial PC interface |
| Carrier variants | VF1661-00: AT&T; VF1662-00: Verizon |
| Documented network scope | North American carrier variants; suitability for Saudi, UAE or Egypt networks requires separate confirmation |
| Reporting format | Contact ID |
| Supply | Regulated 24 V DC from compatible fire panel or UL-listed power supply |
| Operating temperature | 0°C to +49°C |
| Relative humidity | 0–93%, non-condensing |
| Dimensions without antenna | 11.4 x 7.75 x 3.3 inches |
| Shipping weight | 3.18 kg (7 lb) |
| Enclosure colour | Red |
Key features
- Models: VF1661-00 Comm 5G-A / VF1662-00 Comm 5G-V
- Technology provider: Telguard
- Compatible panel: Elite RS serial PC interface
Applications
Supervising-station reporting for compatible Elite RS systems where the specified carrier service, product approvals and local requirements have been confirmed.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
