Product overview

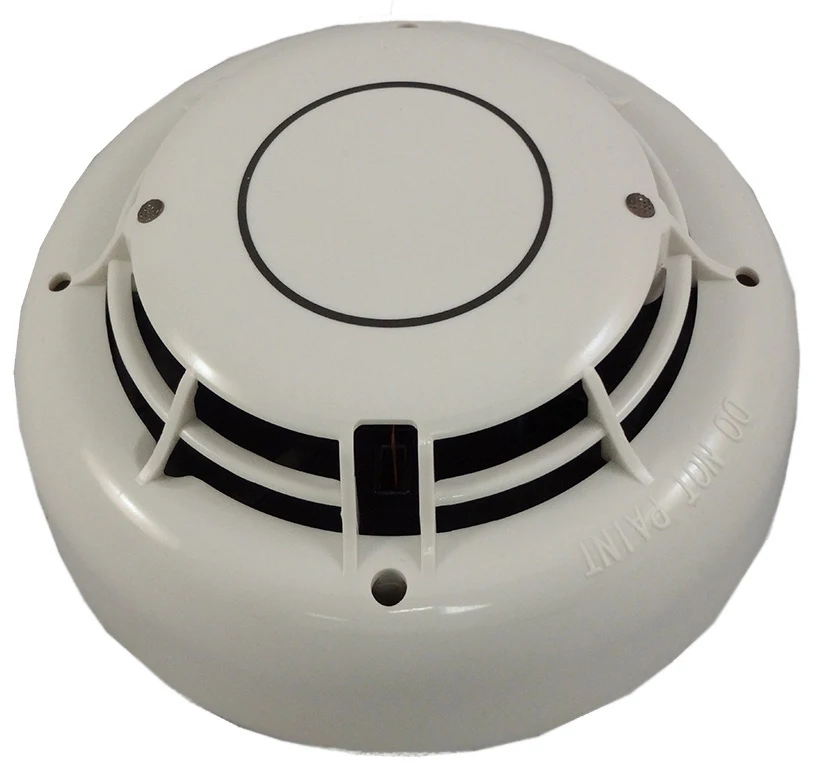

The VES VF2010-00 Heat Sensor uses thermistor-based fixed-temperature and rate-of-rise heat sensing to report conditions to a compatible fire alarm control panel. The detector, mounting base and panel must be selected as a compatible combination, with sensitivity and alarm functions configured for the approved design. The model-specific supply, current and environmental data below supports device selection and loop power calculations. The manufacturer specifies that mounting bases are ordered separately.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF2010-00 Heat Sensor |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Initiating Devices |
| Model | VF2010-00 |
| Sensing method | Fixed-temperature / rate-of-rise thermistor heat detection |
| Operating voltage | 24–41 V DC |
| Standby / alarm current | 350 µA / 500 µA |
| Adjustable fixed threshold | 135°F–190°F, determined by compatible panel |
| Rate-of-rise threshold | 15°F per minute, determined by panel |
| Maximum devices per SLC loop | 127 |
| Operating temperature | 14°F to 122°F |
| Humidity | Up to 95%, non-condensing |
| Height including base | 2.0 inches |
| Weight | 3.2 oz sensor / 4.9 oz with 4 inch base |
| Mounting bases | VF7001 / VF7002 / VF7008 / VF7005, subject to selected system compatibility |
| Supply note | Bases are ordered separately |
Key features
- Model: VF2010-00
- Sensing method: Fixed-temperature / rate-of-rise thermistor heat detection
- Operating voltage: 24–41 V DC
Applications
Heat detection in suitable locations where the fire strategy calls for temperature sensing and smoke sensing may be affected by normal dust or cooking fumes.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
