Product overview

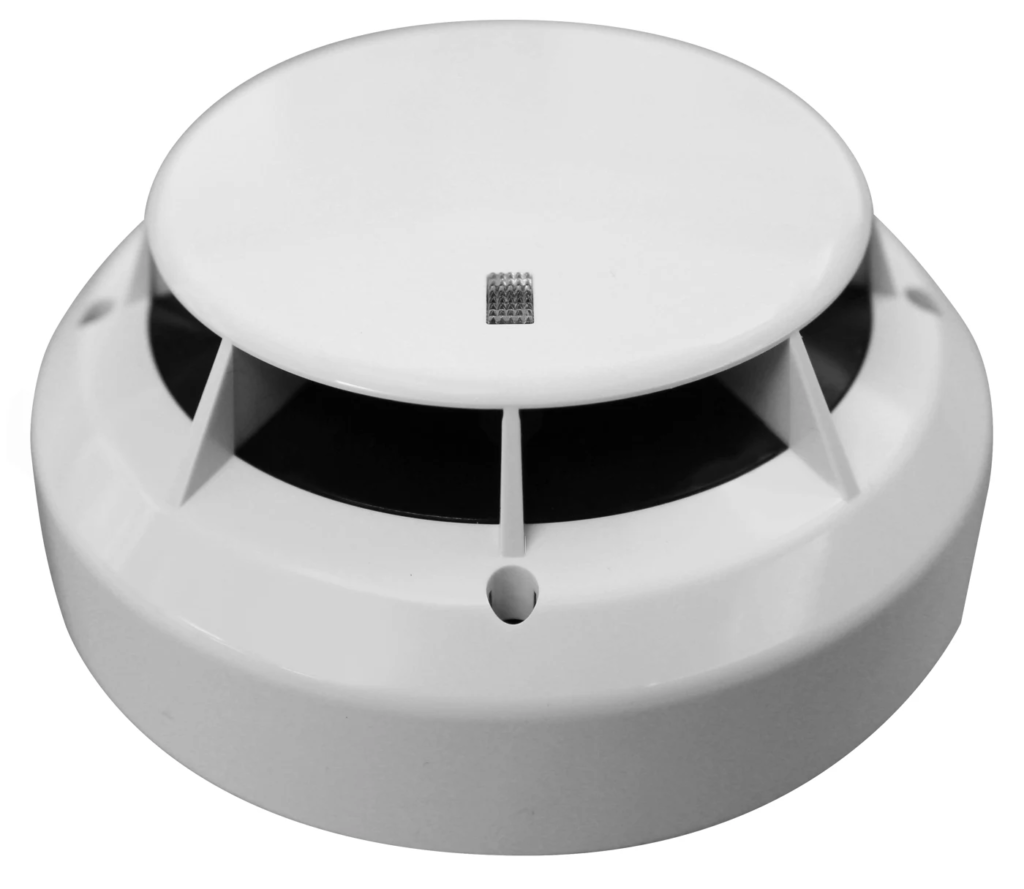

The VES VF2015-00 Photoelectric Smoke Sensor UL 268 7th Edition uses multi-spectrum photoelectric smoke sensing using infrared and blue light to report conditions to a compatible fire alarm control panel. The detector, mounting base and panel must be selected as a compatible combination, with sensitivity and alarm functions configured for the approved design. The model-specific supply, current and environmental data below supports device selection and loop power calculations.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF2015-00 Photoelectric Smoke Sensor UL 268 7th Edition |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Initiating Devices |
| Model | VF2015-00 |
| Sensing method | Multi-spectrum photoelectric smoke detection using IR and blue light |
| Manufacturer-listed approvals | UL 268, 7th edition; exact detector and base combination applies |
| Operating voltage | 24–41 V DC high signal; manufacturer signal and minimum-voltage notes apply |
| Normal standby / LED-off alarm current | 340 µA / 340 µA |
| LED-on alarm current | 8.5 mA |
| Polling current | 6.75 mA; apply manufacturer loop-calculation instructions |
| Open-area sensitivity | 1.40–3.30% per foot at 0–300 FPM |
| Duct sensitivity | Velocity-specific ranges in the linked technical sheet; approved duct arrangement required |
| Compatible base references | VF7013 / VF7014 / VF7015 / VF7016 / VF7017 / VF7018 |
| Operating temperature | 0°C to +49°C |
| Humidity limit | Less than 95% RH at 40°C / less than 80% RH at 49°C |
| Dimensions | 100 mm diameter x 42.7 mm height |
| Weight | 96.4 g |
| Colour options | Ivory / white variant |
Approval scope applies to the listed system and component configuration. Confirm the selected equipment against the current manufacturer document and project submittal.
Key features
- Model: VF2015-00
- Sensing method: Multi-spectrum photoelectric smoke detection using IR and blue light
- Manufacturer-listed approvals: UL 268, 7th edition; exact detector and base combination applies
Applications
Open-area photoelectric smoke detection and manufacturer-approved duct arrangements using the listed detector/base combination and velocity-specific settings.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
