Product overview

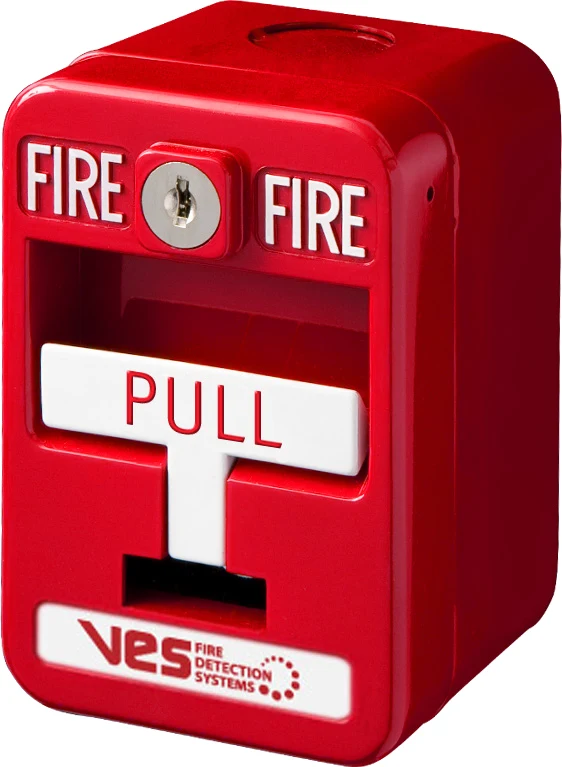

The VES VF3001 / VF3002 Addressable Pull Stations provides manual fire alarm initiation for a compatible addressable system. Single-action and dual-action versions use different operating mechanisms, with reset and mounting options selected for the installation. The VF3001 and VF3002 use the VF6024 contact module to provide their addressable connection; confirm the supplied assembly and backbox in the quotation.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF3001 / VF3002 Addressable Pull Stations |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Initiating Devices |
| Models | VF3001-10 single action / VF3002-10 dual action |
| Addressable interface | VF6024-00 contact module; confirm supplied configuration |
| Compatible system | Elite SLC loop, VES DCP |
| Contact rating | 1 A at 30 V DC, normally open |
| Construction | Metal pull station |
| Reset | Key-operated |
| Mounting options | Standard single-gang box / VF3007-10 indoor surface box / VF3008-10 weatherproof backbox and gasket |
| Accessories | One key and one scored acrylic breakrod stated as supplied; confirm quotation |
| Operating temperature | 14°F to 122°F |
| UL installation temperature | 32°F to 100°F |
| Humidity | 90%, non-condensing |
Key features
- Models: VF3001-10 single action / VF3002-10 dual action
- Addressable interface: VF6024-00 contact module; confirm supplied configuration
- Compatible system: Elite SLC loop, VES DCP
Applications
Manual alarm initiation at designated locations in the approved fire alarm design. Select action type, mounting, accessibility provisions and environmental enclosure suitability for the site.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
