Product overview

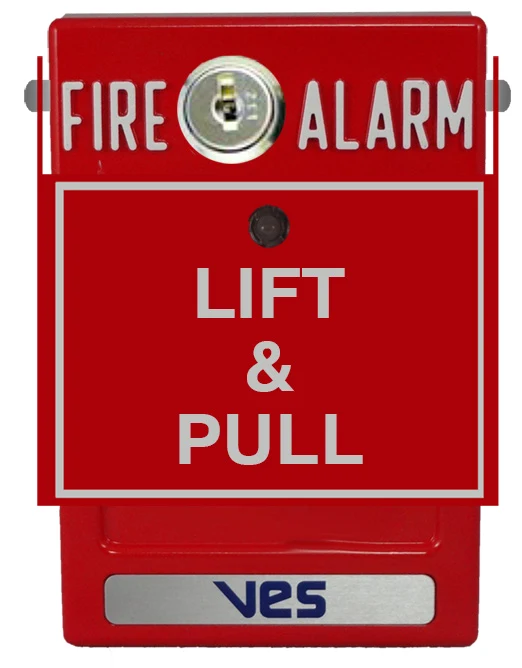

The VES VF3031-10 / VF3032-10 / VF3029-10 AMS Pull Stations provides manual fire alarm initiation for a compatible addressable system. Single-action and dual-action versions use different operating mechanisms, with reset and mounting options selected for the installation. The AMS family integrates its addressable electronics and bi-colour status LED into the station, with key or hex-key reset according to the selected model.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF3031-10 / VF3032-10 / VF3029-10 AMS Pull Stations |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Initiating Devices |
| Models | VF3031-10 / VF3032-10 / VF3029-10 |
| Action types | VF3031 / VF3032: single action; VF3029: dual action |
| Interface | Integrated addressable electronics, VES DCP |
| Operating voltage | 17–41 V DC |
| Typical average current | 550 µA; sheet separately states 660 µA standard consumption |
| Status indication | Bi-colour LED, green polling / red alarm |
| Construction | Metal, red enamel finish |
| Dimensions W x H x D | 3.4 x 4.8 x 2.0 inches |
| Mounting | Single-gang or 4 inch square electrical box |
| Ambient temperature | 32°F to 120°F |
| Humidity | 90%, non-condensing |
| Reset options | Key / hex-key reset, according to ordered model |
Key features
- Models: VF3031-10 / VF3032-10 / VF3029-10
- Action types: VF3031 / VF3032: single action; VF3029: dual action
- Interface: Integrated addressable electronics, VES DCP
Applications
Manual alarm initiation at designated locations in the approved fire alarm design. Select action type, mounting, accessibility provisions and environmental enclosure suitability for the site.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
