Product overview

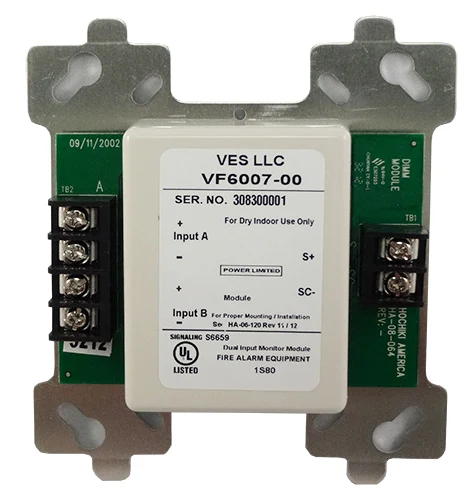

The VES VF6007 Dual Input Monitor monitors two independent contact inputs while using one SLC address. Its circuit role and electrical limits must be coordinated with the compatible panel and approved fire alarm design. The model-specific data below distinguishes the interface configuration, supply requirements and installation conditions so the exact version can be selected for the project.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF6007 Dual Input Monitor |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Modules |
| Model | VF6007-00 |
| Protocol | VES DCP; Elite analogue addressable system |
| Inputs | Two independent NO / NC contact-monitoring circuits |
| Address usage | One SLC address for two inputs |
| Maximum devices per loop | 127 |
| Operating voltage | 17–41 V DC |
| Typical average current | 600 µA |
| Alarm current | 30 mA |
| Mounting | 4 inch square electrical box |
| Dimensions W x H x D | 4.2 x 4.7 x 1.4 inches |
| UL installation temperature | 32°F to 120°F |
| Humidity | Up to 90%, non-condensing |
Key features
- Model: VF6007-00
- Protocol: VES DCP; Elite analogue addressable system
- Inputs: Two independent NO / NC contact-monitoring circuits
Applications
Monitoring nearby dry-contact alarm and supervisory devices, such as water-flow and valve-supervision inputs, on a compatible Elite system.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
