Product overview

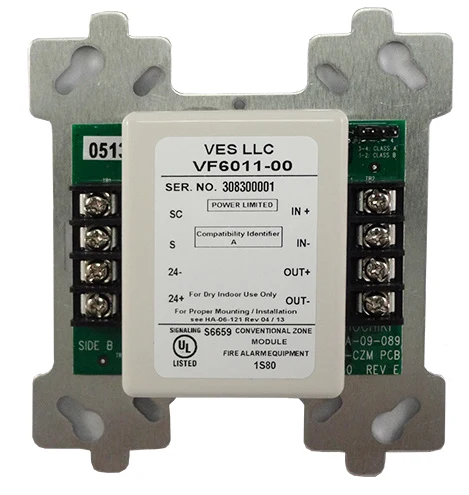

The VES VF6011 Conventional Zone Module connects a compatible conventional detector zone to an Elite addressable system. The exact module version determines the circuit arrangement, electrical ratings and available isolation functions. Coordinate the selected interface with the panel protocol, power calculations, field-device compatibility and approved cause-and-effect schedule. The linked technical sheet provides the wiring and configuration details for installation. An auxiliary supply powers the detector zone, and the connected two-wire detectors must be listed as compatible with the interface.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF6011 Conventional Zone Module |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Modules |
| Model | VF6011-00 |
| Compatible platform | Elite analogue addressable, VES DCP |
| Zone capacity | One zone of up to 25 compatible two-wire conventional detectors |
| Loop operating voltage | 17–41 V DC |
| Typical SLC current | 400 µA |
| Auxiliary supply | 18.8–27.2 V, required for detector zone |
| Detector compatibility | Two-wire detectors must be listed as compatible with the interface |
| End-of-line resistor | 4.7 kilohms |
| Maximum detector loop resistance | 50 ohms, as stated in the sheet |
| Mounting | 4 inch square electrical box |
| Dimensions W x H x D | 4.2 x 4.7 x 1.4 inches |
| UL installation temperature | 32°F to 120°F |
| Humidity | Up to 90%, non-condensing |
Key features
- Model: VF6011-00
- Compatible platform: Elite analogue addressable, VES DCP
- Zone capacity: One zone of up to 25 compatible two-wire conventional detectors
Applications
Phased upgrades or integration of a compatible conventional detector zone into an Elite addressable installation.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
