Product overview

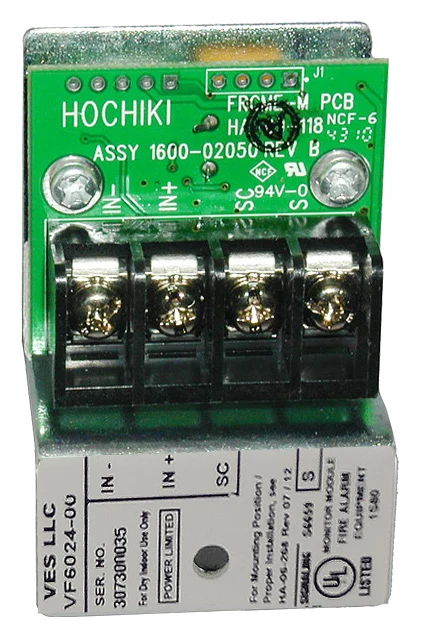

The VES VF6024 Fast Response Contact Module provides a compact addressable dry-contact interface for compatible initiating devices. The exact module version determines the circuit arrangement, electrical ratings and available isolation functions. Coordinate the selected interface with the panel protocol, power calculations, field-device compatibility and approved cause-and-effect schedule. The linked technical sheet provides the wiring and configuration details for installation.
Technical specifications
| Manufacturer | VES |
|---|---|
| Product / system | VF6024 Fast Response Contact Module |
| Product type | Fire Detection |
| Product family | Fire Detection & Alarm |
| Subcategory | Addressable Modules |
| Model | VF6024-00 |
| Input | One programmable NO / NC dry-contact monitoring input |
| Protocol | VES DCP |
| Loop supply range | 25.3–39 V DC |
| Typical average current | 339 µA |
| End-of-line resistor | 10 kilohms |
| Maximum devices per loop | 127 |
| Mounting | 2 inch electrical box |
| Dimensions W x H x D | 1.75 x 2.37 x 0.5 inches |
| Wiring capacity | Up to 14 AWG |
| UL installation temperature | 32°F to 120°F |
| Humidity | Up to 90%, non-condensing |
Key features
- Model: VF6024-00
- Input: One programmable NO / NC dry-contact monitoring input
- Protocol: VES DCP
Applications
Compact dry-contact monitoring interfaces in compatible fire alarm installations, including the documented pull-station arrangement.
Selection and project integration
Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.
Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
