VES · Fire Detection & Alarm

VES VF6040 / VF6041 Supervised Output Module

The VES VF6040 / VF6041 Supervised Output Module provides a supervised output circuit for compatible notification and control applications.

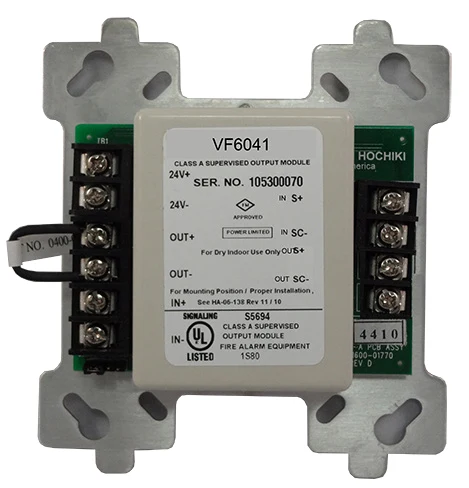

VES VF6040 / VF6041 Supervised Output Module — manufacturer system image
Original VES technical-sheet image of VF6040. The VF6041 variant includes short-circuit isolation.

Product overview

The VES VF6040 / VF6041 Supervised Output Module provides a supervised output circuit for compatible notification and control applications. The exact module version determines the circuit arrangement, electrical ratings and available isolation functions. Coordinate the selected interface with the panel protocol, power calculations, field-device compatibility and approved cause-and-effect schedule. The linked technical sheet provides the wiring and configuration details for installation. The output requires an auxiliary 24 V DC power source in addition to the SLC connection.

Technical specifications

Manufacturer VES
Product / system VF6040 / VF6041 Supervised Output Module
Product type Fire Detection
Product family Fire Detection & Alarm
Subcategory Addressable Modules
Models VF6040-00 / VF6041-00
Output One Class A or Class B supervised circuit
Output rating 2 A at 24 V DC
Isolator option Integrated short-circuit isolator on VF6041 only
Nominal SLC supply range 25.3–39 V DC
Auxiliary supply 24 V DC, required in addition to SLC
Typical SLC current VF6040: 420 µA / VF6041: 220 µA
Maximum SLC alarm current 6 mA
Typical auxiliary current 50 µA, excluding controlled load
Maximum devices per loop 127
Dimensions W x H x D 4.2 x 4.7 x 1.4 inches
UL installation temperature 32°F to 120°F
Humidity Up to 90%, non-condensing

Key features

  • Models: VF6040-00 / VF6041-00
  • Output: One Class A or Class B supervised circuit
  • Output rating: 2 A at 24 V DC

Applications

Supervised notification and configured output applications using the documented circuit and load limits.

Selection and project integration

Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.

Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
