VES VF6056 / VF6057 Current Loop Input Module

The VES VF6056 / VF6057 Current Loop Input Module connects equipment with a standard 4–20 mA output to a compatible VES DCP signalling loop.

VES VF6056 / VF6057 Current Loop Input Module — manufacturer system image

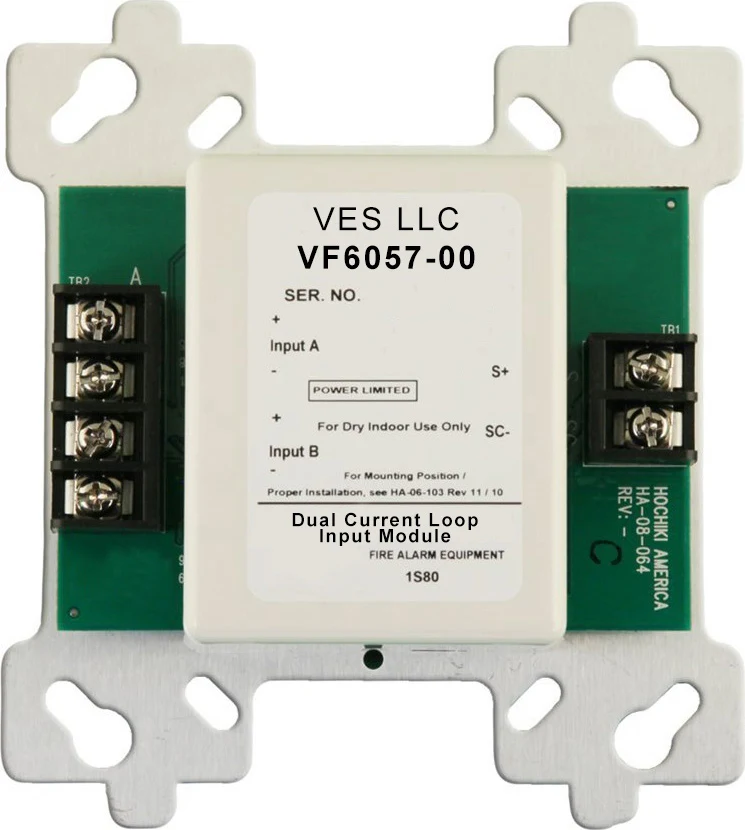

Original VES technical-sheet image of the two-input VF6057. VF6056 has one input.

Product overview

The VES VF6056 / VF6057 Current Loop Input Module connects equipment with a standard 4–20 mA output to a compatible VES DCP signalling loop. The exact module version determines the circuit arrangement, electrical ratings and available isolation functions. Coordinate the selected interface with the panel protocol, power calculations, field-device compatibility and approved cause-and-effect schedule. The linked technical sheet provides the wiring and configuration details for installation.

Technical specifications

Manufacturer VES
Product / system VF6056 / VF6057 Current Loop Input Module
Product type Fire Detection
Product family Fire Detection & Alarm
Subcategory Addressable Modules
Models VF6056-00 one input / VF6057-00 two inputs
Normal input signal 4–20 mA
Programmable thresholds Four per input
Module supply VES DCP loop; no auxiliary supply required for module
SLC nominal / maximum voltage 33 V DC / 39 V DC
Typical SLC current 450 µA
Full-scale input range 0 to +25 mA; 42 V DC maximum
Input impedance 100 ohms
Maximum modules per loop 127
Dimensions W x H x D 4.2 x 4.7 x 0.85 inches
Weight 3.0 oz
Operating temperature 0°C to +49°C
Humidity Up to 90%, non-condensing

Key features

  • Models: VF6056-00 one input / VF6057-00 two inputs
  • Normal input signal: 4–20 mA
  • Programmable thresholds: Four per input

Applications

Monitoring compatible sensors or equipment with 4–20 mA signals and separately configured threshold actions.

Selection and project integration

Share the fire alarm drawings, equipment schedule, compatible panel platform and cause-and-effect requirements with UDCT. Selection should confirm device protocols, supported interfaces, circuit supervision, power and standby calculations, and the exact enclosure or module arrangement.

Use the current manufacturer documentation to check compatibility, wiring limits, software requirements and approval scope. Commissioning should verify the configured alarm, fault, indication and control functions as part of the complete system. Remote reporting also requires a compatible receiving service and confirmation of local network availability.
